vdo-types.h File Reference

Vdo common type definitions. More...

#include <glib-object.h>

Include dependency graph for vdo-types.h:

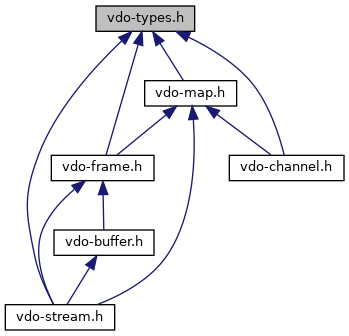

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	VdoChunk
	A video chunk. More...
struct	VdoMemChunk
	A memory chunk. More...
struct	VdoResolution
	A resolution. More...
struct	VdoResolutionSet
	A set of resolutions. More...
struct	VdoRect
	A representation of a rectangle with a position. More...

Enumerations
enum	VdoWdrMode
	Wide Dynamic Range (WDR) modes. More...
enum	VdoFormat
	Video formats. More...
enum	VdoH264Profile
	H.264 profiles. More...
enum	VdoH265Profile
	H.265 profiles. More...
enum	VdoAV1Profile
	AV1 profiles. More...
enum	VdoRateControlMode
	Bitrate control modes. More...
enum	VdoRateControlPriority
	Bitrate control priorities. More...
enum	VdoFrameType
	Video frame types. More...
enum	VdoZipStreamProfile
	Zipstream profiles. More...
enum	VdoZipStreamGdr
	Zipstream GDR (Live only). More...
enum	VdoChunkType
	Video chunk types. More...
enum	VdoChunkOption
	Video chunk options. More...
enum	VdoStreamTimestamp
	Timestamp types. More...
enum	VdoIntent
	Intent values. More...
enum	VdoStreamEvent
	Stream related events. More...
enum	VdoBufferAccess
	Buffer access definitions. More...
enum	VdoBufferStrategy
	Buffer strategy. More...

Functions
union	__attribute__ ((__may_alias__))
	Generic object for two signed 32bit values. More...
GType	vdo_wdr_mode_get_type (void)
	Get wdr mode type. More...
GType	vdo_format_get_type (void)
	Get vdo format type. More...
GType	vdo_h264_profile_get_type (void)
	Get h264 profile type. More...
GType	vdo_h265_profile_get_type (void)
	Get h265 profile type. More...
GType	vdo_av1_profile_get_type (void)
	Get AV1 profile type. More...
GType	vdo_zipstream_profile_get_type (void)
	Get zipstream profile type. More...
GType	vdo_zipstream_gdr_get_type (void)
	Get zipstream GDR type. More...
GType	vdo_rate_control_mode_get_type (void)
	Get rate control mode type. More...
GType	vdo_rate_control_priority_get_type (void)
	Get rate control priority type. More...
GType	vdo_frame_type_get_type (void)
	Get vdo frame type. More...

Detailed Description

Vdo common type definitions.

Copyright (C) 2016-2019, Axis Communications AB, Lund

Enumeration Type Documentation

VdoAV1Profile

enum VdoAV1Profile

AV1 profiles.

Enumerator
VDO_AV1_PROFILE_NONE	None
VDO_AV1_PROFILE_MAIN	Main
VDO_AV1_PROFILE_MAIN_10	Main 10-bit

VdoBufferAccess

enum VdoBufferAccess

Buffer access definitions.

Specifies how buffers allocated and provided by vdo are about to be accessed.

The Range [CPU_RD..ANY_RD] is ReadOnly The Range [CPU_WR..ANY_WR] is WriteOnly The Range [CPU_RW..ANY_RW] is ReadWrite

Enumerator
VDO_BUFFER_ACCESS_NONE	None
VDO_BUFFER_ACCESS_CPU_RD	CPU exclusive read only access.
VDO_BUFFER_ACCESS_DEV_RD	Device exclusive read only access.
VDO_BUFFER_ACCESS_ANY_RD	CPU/device read only access.
VDO_BUFFER_ACCESS_CPU_WR	CPU exclusive write access.
VDO_BUFFER_ACCESS_DEV_WR	Device exclusive write access.
VDO_BUFFER_ACCESS_ANY_WR	CPU/device write only access.
VDO_BUFFER_ACCESS_CPU_RW	CPU exclusive read/write access.
VDO_BUFFER_ACCESS_DEV_RW	Device exclusive read/write access.
VDO_BUFFER_ACCESS_ANY_RW	CPU/device read/write access.

VdoBufferStrategy

enum VdoBufferStrategy

Buffer strategy.

A buffer strategy defines how buffer lifetime management is handled. That includes allocation and ownership.

Enumerator
VDO_BUFFER_STRATEGY_NONE	None
VDO_BUFFER_STRATEGY_EXPLICIT	Lifetime is managed by 'buffer_alloc' and 'buffer_unref' i.e the user allocates and deallocates the buffers used. Deprecated: Use VDO_BUFFER_STRATEGY_INFINITE
VDO_BUFFER_STRATEGY_INFINITE	VDO creates a new buffer for every transfer. (Recommended)

VdoChunkOption

enum VdoChunkOption

Video chunk options.

Enumerator
VDO_CHUNK_OPTION_NONE	No options
VDO_CHUNK_OPTION_MMAP	Map all chunks

VdoChunkType

enum VdoChunkType

Video chunk types.

Enumerator
VDO_CHUNK_NONE	None
VDO_CHUNK_ERROR	Error

VdoFormat

enum VdoFormat

Video formats.

See vdo_buffer_get_data for data layout.

Enumerator
VDO_FORMAT_NONE	None
VDO_FORMAT_H264	H.264
VDO_FORMAT_H265	H.265 (Not Artpec-6)
VDO_FORMAT_JPEG	JPEG
VDO_FORMAT_YUV	YUV
VDO_FORMAT_RGB	RGB (Ambarella CV, Artpec-9)
VDO_FORMAT_PLANAR_RGB	Planar RGB (Ambarella CV)
VDO_FORMAT_AV1	AV1 (Artpec-9)
VDO_FORMAT_AVIF	AVIF (Artpec-9)

VdoFrameType

enum VdoFrameType

Video frame types.

See vdo_buffer_get_data for data layout.

Enumerator
VDO_FRAME_TYPE_NONE	None
VDO_FRAME_TYPE_H264_IDR	H.264 Instantaneous Decoder Refresh (IDR)
VDO_FRAME_TYPE_H264_P	H.264 P-frame
VDO_FRAME_TYPE_H264_B	H.264 B-frame
VDO_FRAME_TYPE_H265_IDR	H.265 Instantaneous Decoder Refresh (IDR)
VDO_FRAME_TYPE_H265_P	H.265 P-frame
VDO_FRAME_TYPE_H265_B	H.265 B-frame
VDO_FRAME_TYPE_JPEG	JPEG image
VDO_FRAME_TYPE_YUV	YUV image
VDO_FRAME_TYPE_RGBA	RGBA image
VDO_FRAME_TYPE_RGB	RGB image
VDO_FRAME_TYPE_PLANAR_RGB	Planar RGB image
VDO_FRAME_TYPE_AV1_KEY	AV1 Key-frame
VDO_FRAME_TYPE_AV1_INTER	AV1 Inter-frame
VDO_FRAME_TYPE_AV1_BIDI	AV1 Bidirectional Inter-frame
VDO_FRAME_TYPE_AVIF	AVIF image

VdoH264Profile

enum VdoH264Profile

H.264 profiles.

Enumerator
VDO_H264_PROFILE_NONE	None
VDO_H264_PROFILE_BASELINE	Baseline
VDO_H264_PROFILE_MAIN	Main
VDO_H264_PROFILE_HIGH	High

VdoH265Profile

enum VdoH265Profile

H.265 profiles.

Enumerator
VDO_H265_PROFILE_NONE	None
VDO_H265_PROFILE_MAIN	Main
VDO_H265_PROFILE_MAIN_10	Main 10-bit

VdoIntent

enum VdoIntent

Intent values.

An intent describes how a client intends to make use of a resource, e.g. a VdoStream. Beware VDO_INTENT_MONITOR and VDO_INTENT_EVENTFD are mutually exclusive.

Enumerator
VDO_INTENT_NONE	None
VDO_INTENT_CONTROL	The client intends to control the resource
VDO_INTENT_MONITOR	The client intends to monitor the resource using g_signal
VDO_INTENT_CONSUME	The client intends to consume the resource
VDO_INTENT_PRODUCE	The client intends to produce the resource
VDO_INTENT_DEFAULT	Default, consume + control
VDO_INTENT_EVENTFD	Monitor resources using file descriptors
VDO_INTENT_UNIVERSE	Everything except VDO_INTENT_EVENTFD

VdoRateControlMode

enum VdoRateControlMode

Bitrate control modes.

Enumerator
VDO_RATE_CONTROL_MODE_NONE	None
VDO_RATE_CONTROL_MODE_CBR	Constant bitrate
VDO_RATE_CONTROL_MODE_VBR	Variable bitrate
VDO_RATE_CONTROL_MODE_MBR	Maximum bitrate
VDO_RATE_CONTROL_MODE_ABR	Average bitrate

VdoRateControlPriority

enum VdoRateControlPriority

Bitrate control priorities.

Enumerator
VDO_RATE_CONTROL_PRIORITY_NONE	None
VDO_RATE_CONTROL_PRIORITY_FRAMERATE	Prioritize framerate
VDO_RATE_CONTROL_PRIORITY_QUALITY	Prioritize quality
VDO_RATE_CONTROL_PRIORITY_FULL_FRAMERATE	Prioritize full framerate

VdoStreamEvent

enum VdoStreamEvent

Stream related events.

Important asynchronous stream events, see vdo_stream_get_event.

Enumerator
VDO_STREAM_EVENT_NONE	None
VDO_STREAM_EVENT_STARTED	The stream started
VDO_STREAM_EVENT_STOPPED	The stream stopped
VDO_STREAM_EVENT_RESOURCE	Current resource usage
VDO_STREAM_EVENT_QUOTA_SOFT	Warning above soft quota
VDO_STREAM_EVENT_QUOTA_HARD	Error hard quota hit
VDO_STREAM_EVENT_ZIPSTREAM	Zipstream settings
VDO_STREAM_EVENT_BUFFERING	Likely to reach target (No compromises)
VDO_STREAM_EVENT_BUFFERING_WARN	Likely to reach target (With compromises)
VDO_STREAM_EVENT_BUFFERING_FAIL	Failed to reach target
VDO_STREAM_EVENT_CREATED	Private/Internal
VDO_STREAM_EVENT_CLOSED	Private/Internal
VDO_STREAM_EVENT_EXISTING	Private/Internal
VDO_STREAM_EVENT_INVALID	Invalid event

VdoStreamTimestamp

enum VdoStreamTimestamp

Timestamp types.

Enumerator
VDO_TIMESTAMP_NONE	None
VDO_TIMESTAMP_UTC	Deprecated: Use vdo_frame_get_utc timestamp This is equivalent to gettimeofday but uses a single µs counter.
VDO_TIMESTAMP_ZIPSTREAM	Value can be read from timestamp. dsp_pts for zipstream and mono_pts for non-zipstream.
VDO_TIMESTAMP_MONO_CAPTURE	Value can be read from timestamp, dsp_pts for zipstream and mono_pts for non-zipstream.
VDO_TIMESTAMP_MONO_SERVER	Value can be read from custom_timestamp which shows server timestamp, monotonic_time.
VDO_TIMESTAMP_MONO_CLIENT	Value can be read from custom_timestamp which shows client timestamp, monotonic_time.
VDO_TIMESTAMP_MONO_CLIENT_SERVER_DIFF	Value can be read from custom_timestamp which shows the diff between client and server timestamp.
VDO_TIMESTAMP_MONO_CLIENT_CAPTURE_DIFF	Value can be read from custom_timestamp which shows the diff between client and capture timestamp.

VdoWdrMode

enum VdoWdrMode

Wide Dynamic Range (WDR) modes.

Enumerator
VDO_WDR_MODE_NONE	None
VDO_WDR_MODE_LINEAR	Linear
VDO_WDR_MODE_2X	2 exposures
VDO_WDR_MODE_3X	3 exposures
VDO_WDR_MODE_4X	4 exposures
VDO_WDR_MODE_SENSOR	Sensor internal
VDO_WDR_MODE_OFF	No sensor used, for some platforms this means no video
VDO_WDR_MODE_AUTO	Choose default WDR mode from sensor driver

VdoZipStreamGdr

enum VdoZipStreamGdr

Zipstream GDR (Live only).

Enumerator
VDO_ZIPSTREAM_GDR_NONE	None
VDO_ZIPSTREAM_GDR_AUTO	Auto, vdo will setup
VDO_ZIPSTREAM_GDR_OFF	No GDR
VDO_ZIPSTREAM_GDR_BALANCED	Mostly GDR, some I-frames
VDO_ZIPSTREAM_GDR_EXTREME	GDR, no I-frames except for first frame and when requested

VdoZipStreamProfile

enum VdoZipStreamProfile

Zipstream profiles.

Enumerator
VDO_ZIPSTREAM_PROFILE_NONE	None
VDO_ZIPSTREAM_PROFILE_CLASSIC	Classic
VDO_ZIPSTREAM_PROFILE_STORAGE	Storage
VDO_ZIPSTREAM_PROFILE_LIVE	Live, NetworkLoadBalancing

Function Documentation

__attribute__()

union __attribute__

(

(__may_alias__)

)

Generic object for two signed 32bit values.

Generic object for four unsigned 32bit values.

Generic object for four signed 32bit values.

Generic object for two unsigned 32bit values.

Example:

// Create a signed 32bit pair, representing some type.
VdoPair32i pair = {1, 2};

// Use the pair as a coordinate.
gint32 x = pair.x;
gint32 y = pair.y;

// Use the pair as a size.
gint32 width  = pair.w;
gint32 height = pair.h;

// Use the pair as a ratio.
gint32 num = pair.num;
gint32 den = pair.den;

// Access an arbitrary value.
gint32 pair = pair[0];

Example:

// Create an unsigned 32bit pair, representing some type.
VdoPair32u pair = {1, 2};

// Use the pair as a coordinate.
guint32 x = pair.x;
guint32 y = pair.y;

// Use the pair as a size.
guint32 width  = pair.w;
guint32 height = pair.h;

// Use the pair as a ratio.
guint32 num = pair.num;
guint32 den = pair.den;

// Access an arbitrary value.
gint32 pair = pair[0];

Example:

// Create an object with four signed 32bit value, representing some type.
VdoPair32i obj = {1, 2, 3, 4};

// Use the object as a rectangle.
gint32 x = obj.x;
gint32 y = obj.y;
gint32 width  = obj.w;
gint32 height = obj.h;

// Access an arbitrary value.
gint32 val = obj[0];

Example:

// Create an object with four unsigned 32bit value, representing some type.
VdoPair32i obj = {1, 2, 3, 4};

// Use the object as a rectangle.
guint32 x = obj.x;
guint32 y = obj.y;
guint32 width  = obj.w;
guint32 height = obj.h;

// Access an arbitrary value.
gint32 pair = obj[0];

vdo_av1_profile_get_type()

GType vdo_av1_profile_get_type

(

void

)

Get AV1 profile type.

Returns

GType: none,main,main-10

vdo_format_get_type()

GType vdo_format_get_type

(

void

)

Get vdo format type.

Returns

GType: none,h264,h265,jpeg,yuv,rgba,rgb,rgbp,av1

vdo_frame_type_get_type()

GType vdo_frame_type_get_type

(

void

)

Get vdo frame type.

Returns

GType: none, h264-idr,h264-p,h264-b, h265-idr,h265-p,h265-b, jpeg,yuv,rgba,rgb,rgbp, av1-key,av1-inter,av1-bidi

vdo_h264_profile_get_type()

GType vdo_h264_profile_get_type

(

void

)

Get h264 profile type.

Returns

GType: none,baseline,main,high

vdo_h265_profile_get_type()

GType vdo_h265_profile_get_type

(

void

)

Get h265 profile type.

Returns

GType: none,main,main-10

vdo_rate_control_mode_get_type()

GType vdo_rate_control_mode_get_type

(

void

)

Get rate control mode type.

Returns

GType: none,cbr,vbr,mbr,abr

vdo_rate_control_priority_get_type()

GType vdo_rate_control_priority_get_type

(

void

)

Get rate control priority type.

Returns

GType: none,framerate,quality,full_framerate

vdo_wdr_mode_get_type()

GType vdo_wdr_mode_get_type

(

void

)

Get wdr mode type.

Returns

GType: none,linear,2x,3x,4x,sensor

vdo_zipstream_gdr_get_type()

GType vdo_zipstream_gdr_get_type

(

void

)

Get zipstream GDR type.

Returns

GType: none,auto,off,balanced,always

vdo_zipstream_profile_get_type()

GType vdo_zipstream_profile_get_type

(

void

)

Get zipstream profile type.

Returns

GType: none,classic,storage,live
