IdPoint service

IdPoint service guide

The IdPoint service is used for management of IdPoints. An IdPoint is a representation of a physical device where a user can input identification information. For example:

• Card readers
• Keypads
• Biometric sensors

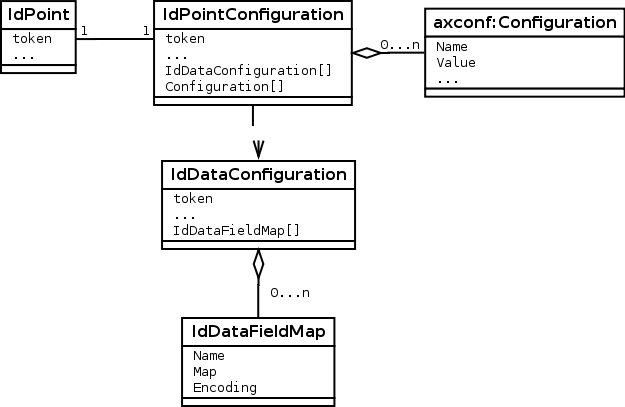

The diagram shows the data types that are used by the IdPoint Service.

IdPoint Data Types

Setting up an IdPoint

A functioning IdPoint consists of two parts:

• IdPoint — The abstract representation in the system
• IdPointConfiguration — The hardware configuration bound to the IdPoint

These two structures are connected by giving them the same token. These structures can be added or removed in any order. When only one of them exists, the IdPoint service will not do anything with the data until the complementary structure is set.

Creating the IdPoint

Creating an abstract IdPoint is straight-forward. The token returned can be used to set the IdPointConfiguration later. Note that the opposite order is also possible. Alternatively, it is possible to use predefined tokens.

Request

{
  "axtid:SetIdPoint": {
    "IdPoint": [ {
      "token": "idpoint1",
      "Name": "Name1",
      "Area": "Area1",
      "MinPINSize": 4,
      "MaxPINSize": 4,
      "EndOfPIN": "#",
      "HeartbeatInterval": "PT10M",
      "Location": "Loc1",
      "Timeout": "PT3S",
      "Action": "Action1",
      "Description": "Desc1"
    } ]
  }
}

Request

<axtid:SetIdPoint>
  <axtid:IdPoint token="token">
    <axtid:Action>Action1</axtid:Action>
    <axtid:Area>Area1</axtid:Area>
    <axtid:Description>Desc1</axtid:Description>
    <axtid:EndOfPin>#</axtid:EndOfPin>
    <axtid:HeartbeatInterval>PT10M</axtid:HeartbeatInterval>
    <axtid:Location>Loc1</axtid:Location>
    <axtid:MaxPINSize>4</axtid:MaxPINSize>
    <axtid:MinPINSize>4</axtid:MinPINSize>
    <axtid:Name>Name1</axtid:Name>
    <axtid:Timeout>PT3S</axtid:Timeout>
  </axtid:IdPoint>
</axtid:SetIdPoint>

Configuring reader hardware

Hardware configuration of the IdPoint is done in the IdPointConfiguration structure. It consists of token, DeviceUUID, Configuration and IdDataConfiguration. These configuration fields are described in turn below

DeviceUUID

An IdPoint is bound to a specific hardware unit using the DeviceUUID field. When setting an IdPointConfiguration with an empty DeviceUUIDfield, the field will be filled in with the UUID of the device to which the request is made. This will bind the configuration to that specific unit. For more information about the UUID field, see UUID.

Configuration structure

The Configuration data structure describes the common hardware devices connected to the door controller and their connection types, see table. Some of the settings generate new IoUsers that can be bound to physical pins using axisio:SetIoAssignment, see I/O assignment service guide.

When issuing a call to SetIdPointConfiguration without a value for all parameters, one of two things will happen:

• If a structure with the same token already exists in the database, only the supplied parameters will be replaced.
• If a structure with the specified token does not exist in the database, any missing parameters will be replaced with default values (the first value in each list of possible values).

Available parameters in the Configuration data structure.

Parameter	Valid values	Description
IdPoint.Reader.Type	None Wiegand RS-485FD RS-485HD TCPIP	The low-level protocol to use for the connected reader. If the IdPoint only has connected Request to EXit (REX) devices, None can be used. Use RS-485HD for Aperio readers, see section Aperio doors. Use TCPIP for Smart Intego readers, see section Smart Intego Doors.
IdPoint.RS-485HD.Protocol	None AADP OSDP HADP	Protocol to use for RS-485FD. Valid when Reader.Type is RS-485FD
IdPoint.TCPIP.Protocol	SmartIntego	Protocol to usefor TCPIP. Valid when Reader.Type is TCPIP.
IdPoint.TCPIP.Address	Dotted—decimal number	Address of TCPIP reader/gateway in dotted—decimal format, for example 192.168.123.132
IdPoint.TCPIP.Port	Decimal number	Port number of TCPIP reader/gateway in decimal format. Use 2010 for Smart Intego readers.
IdPoint.LED.Type	None SingleLED DualLED	Specify the reader’s LED configuration: None if reader does not have any LED, SingleLED if the reader has one LED (e.g. red or green) or DualLED if the reader has two LEDs (e.g. both green and red).
IdPoint.LED.ActiveLevel	ActiveLow ActiveHigh	Applicable if the reader has LEDs configured by IdPoint.LED.Type. Select ActiveLow if closed circuit will activate the LEDs. Select ActiveHigh if opened circuit will activate the LEDs.
IdPoint.Beeper.Type	None ActiveLow ActiveHigh	Specify the reader’s beeper configuration:Select None if reader does not have any beeper. Select ActiveLow if closed circuit will activate the beeper. Select ActiveHigh if opened circuit will activate the beeper.
IdPoint.Tampering.Type	None ActiveLow ActiveHigh SupervisedActiveLow SupervisedActiveHigh	Specify the reader’s tampering detection:Select None if reader does not have any tampering detection. Select ActiveLow if closed circuit will trigger the tampering detection. Select ActiveHigh if opened circuit will trigger the tampering detection. Select SupervisedActiveLow to trigger tampering detection if the target voltage for the supervised low state is reached. Select SupervisedActiveHigh to trigger tampering detection if the target voltage for the supervised high state is reached.
IdPoint.Tampering.SupervisedCut	mV	Applicable if IoMode in IoAssignment is set to supervised, see section Assign I/O:s to services. Target voltage (in millivolts) for the cut (open circuit) state when using supervised inputs. End of line resistors must be used.
IdPoint.Tampering.SupervisedShort	mV	Applicable if IoMode in IoAssignment is set to supervised, see section Assign I/O:s to services. Target voltage (in millivolts) for the short circuit state when using supervised inputs. End of line resistors must be used.
IdPoint.Tampering.SupervisedHigh	mV	Applicable if IoMode in IoAssignment is set to supervised, see section Assign I/O:s to services. Target voltage (in millivolts) for the high state when using supervised inputs. End of line resistors must be used.
IdPoint.Tampering.SupervisedLow	mV	Applicable if IoMode in IoAssignment is set to supervised, see section Assign I/O:s to services. Target voltage (in millivolts) for the low state when using supervised inputs. End of line resistors must be used.
IdPoint.REX.Type	None ActiveLow ActiveHigh SupervisedActiveLow SupervisedActiveHigh RS-485HD	Specify if one or more REX devices are connected:Select None if no REX device is connected. Select ActiveLow if activating the REX device closes the circuit. Select ActiveHigh if activating the REX device opens the circuit. Select SupervisedActiveLow to trigger tampering detection if the target voltage for the supervised low state is reached. Select SupervisedActiveHigh to trigger tampering detection if the target voltage for the supervised high state is reached. Select RS-485HD if using Aperio doors.
IdPoint.REX.SupervisedCut	mV	Applicable if IoMode in IoAssignment is set to supervised, see section Assign I/O:s to services. Target voltage (in millivolts) for the cut (open circuit) state when using supervised inputs. End of line resistors must be used.
IdPoint.REX.SupervisedShort	mV	Applicable if IoMode in IoAssignment is set to supervised, see section Assign I/O:s to services. Target voltage (in millivolts) for the short circuit state when using supervised inputs. End of line resistors must be used.
IdPoint.REX.SupervisedLow	mV	Applicable if IoMode in IoAssignment is set to supervised, see section Assign I/O:s to services. Target voltage (in millivolts) for the low state when using supervised inputs. End of line resistors must be used.
IdPoint.REX.SupervisedHigh	mV	Applicable if IoMode in IoAssignment is set to supervised, see section Assign I/O:s to services. Target voltage (in millivolts) for the high state when using supervised inputs. End of line resistors must be used.
IdPoint.Keypress.Types	Auto 4bit 6bitEData 8bit 8bitInvLow 8bitInvHigh 8bitDF750	Selecting Auto here usually works, but if a keypress format is not recognized correctly it may be necessary to set it explicitly.
IdPoint.Hardware.Address	Hexadecimal number	Applies to both Aperio readers and Smart Intego readers. The reader’s hardware address. A six-digit hexadecimal number for Aperio readers, for example A0B1C2 and a hexadecimal number for Smart Intego readers, for example 0x200. When used to specify the OSDP/HADP reader address, i.e. when the IdPoint.Hardware.DetectionMode parameter is set to Manual, the hexadecimal number should be between 0 and 7E. Numbers outside of this interval will be interpreted as 0. Note that AXIS A1610 and A1210 support up to two OSDP readers per port. AXIS A1601 supports one OSDP reader per port.
IdPoint.Hardware.DetectionMode	Auto Manual	Applies only to OSDP and HADP readers. If set to Auto, the driver will automatically scan all addresses to find the connected reader. If set to Manual, the address of the connected reader is specified using the IdPoint.Hardware.Address parameter. The default value is Auto. The Auto mode can be used reliably only when there is only a single reader connected to the port. OSDP multi-drop setups must use the Manual mode.
IdPoint.Hardware.Id	string	Applies to Smart Intego readers. The "phi" string of a Smart Intego reader device. See section Smart Intego doors.
IdPoint.Hub.Hardware.Address	Hexadecimal number	Applies to Smart Intego readers. The gateway’s device address, for example: 0x100. See section Smart Intego doors.
IdPoint.SecureChannel.KeyToken	The token	See section Keystore service guide
IdPoint.SecureChannel.KeyType	KeyBase KeyMaster None	KeyBase is a cryptographic key used to encrypt the communication between the OSDP reader and the controller. KeyMaster is the secure cryptographic channel master key, used with a cUID to generate a unique secure channel base key for each link between a panel and a reader.
IdPoint.Status.BatteryAlarm	True Low Hardware address	Applicable if IsProperty is true,True if battery fault is active. Low if battery is not OK. Hardware address of the device with battery alarm.
IdPoint.Status.RadioDisturbance	True Radio disturbance detected Hardware address	Applicable if IsProperty is true,True if there is radio disturbance. Radio disturbance detected if radio is not OK. Hardware address of the device with radio disturbance.
IdPoint.Status.SecureChannel	string	Applicable if IsProperty is true,Indicates the status of the IdPoint device and is only sent for IdPoint readers using the OSDP protocolHuman readable status of the secure channel.
IdPoint.Status.Device	TrueFalse	Applicable if IsProperty is true,True if the device responds to communication.
IdPoint.Whitelist.IdData.Name	string	A credential may contain several IdData fields. Valid examples includes PIN and Card. Which IdData field to use for which whitelist purposes must be identified beforehand. This information is then stored in a parameter IdPoint.Whitelist.IdData.Name and the default value is Card.Note> Parameter only applicable to SmartIntego doors.

Implementing mV

It is recommended that you place a supervised resistor-circuit as close to the monitoring device as possible.

For example, the circuit schema for serial first is used for supervised settings specifically for the AXIS A1601 Network Door Controller, with the mV values listed in the first table below.

On the other hand, the circuit schema for parallel first is used for the supervised settings of the mV values, and refers to the column Parallel 22k 4k7 in the second table below.

This table showcases the mV values for an open collector output with 1k pull-up to 5V (HID RK40) when using IdPointConfiguration.Tampering

Level	Serial 1k	Serial 2k2	Serial 4k7	Serial 10k	Parallel 22k 2k7
SupervisedCut	2796	2796	2796	2796	2796
SupervisedHigh	2517	3308	3894	4132	3788
SupervisedLow	331	563	925	1407	814
SupervisedShort	0	0	0	0	0

This table showcases the mV values for a basic switch when using either IdPointConfiguration.REX or DoorConfiguration.Doormonitor.

Level	Serial 1k	Serial 2k2	Serial 4k7	Serial 10k	Parallel 22k 2k7
SupervisedCut	2796	2796	2796	2796	2796
SupervisedHigh	449	827	1336	1824	1888
SupervisedLow	244	487	864	1359	760
SupervisedShort	0	0	0	0	0

Configuring a Wiegand reader

This is a configuration for a Wiegand reader (e.g. HID RK40 with default parameters). It has the following features:

• Wiegand output
• A single LED that switches between red and green.
• The LED turns to green when grounded.
• A beeper which sounds when grounded.
• A tampering detection line which indicates tampering when grounded.

{"IdPointConfiguration": [{
  "token": "",
  "DeviceUUID": "",
  "IdDataConfiguration": [""],
  "Configuration": [ {"Name": "IdPoint.Reader.Type",
        "Value": "Wiegand"},
        {"Name": "IdPoint.LED.Type",
        "Value": "SingleLED"},
        {"Name": "IdPoint.LED.ActiveLevel",
        "Value": "ActiveLow"},
        {"Name": "IdPoint.Beeper.Type",
        "Value": "ActiveLow"},
        {"Name": "IdPoint.Tampering.Type",
        "Value": "ActiveLow"} ]
  }]
}

<axtid:IdPointConfiguration token="">
  <axtid:Configuration>
    <axconf:Name>IdPoint.Reader.Type</axconf:Name>
    <axconf:Value>Wiegand</axconf:Value>
  </axtid:Configuration>
  <axtid:Configuration>
    <axconf:Name>IdPoint.LED.Type</axconf:Name>
    <axconf:Value>SingleLED</axconf:Value>
  </axtid:Configuration>
  <axtid:Configuration>
    <axconf:Name>IdPoint.LED.ActiveLevel</axconf:Name>
    <axconf:Value>ActiveLow</axconf:Value>
  </axtid:Configuration>
  <axtid:Configuration>
    <axconf:Name>IdPoint.Beeper.Type</axconf:Name>
    <axconf:Value>ActiveLow</axconf:Value>
  </axtid:Configuration>
  <axtid:Configuration>
    <axconf:Name>IdPoint.Tampering.Type</axconf:Name>
    <axconf:Value>ActiveLow</axconf:Value>
  </axtid:Configuration>
  <axtid:DeviceUUID></axtid:DeviceUUID>
  <axtid:IdDataConfiguration></axtid:IdDataConfiguration>
</axtid:IdPointConfiguration>

Note that IdDataConfiguration is set to empty in this request since it will be covered later. Note also that DeviceUUID is set to empty here. This will be replaced by the UUID of the device to which the request is made.

Once this configuration has been set together with its corresponding IdPoint, some IoUsers will exist on the unit to which the request was made. See I/O assignment service guide for how to assign these to physical pins.

Configuring an open supervised device protocol (OSDP) reader

For an OSDP reader, it is only necessary to assign the serial pins since LED, beeper, tampering information etc. is sent using serial commands. Here we are assuming a half-duplex RS485 connection.

{"IdPointConfiguration": [{
  "token": "",
  "DeviceUUID": "",
  "IdDataConfiguration": [""],
  "Configuration": [ {"Name": "IdPoint.Reader.Type",
        "Value": "RS-485HD"},
        {"Name": "IdPoint.RS-485HD.Protocol",
        "Value": "OSDP"} ]
  }]
}

<axtid:IdPointConfiguration token="">
<axtid:Configuration>
<axconf:Name>IdPoint.Reader.Type</axconf:Name>
<axconf:Value>RS-485HD</axconf:Value>
</axtid:Configuration>
<axtid:Configuration>
<axconf:Name>IdPoint.RS-485HD.Protocol</axconf:Name>
<axconf:Value>OSDP</axconf:Value>
</axtid:Configuration>
<axtid:DeviceUUID></axtid:DeviceUUID>
<axtid:IdDataConfiguration></axtid:IdDataConfiguration>
</axtid:IdPointConfiguration>

The RS-485HD IoUser can now be assigned using the I/O Assignment service, see I/O assignment service.

Configuring an open supervised device protocol (OSDP) secure channel reader

Step1: Start by adding a key to the key store, by issuing the following to the axkey service:

{
 "axkey:SetEncryptionKey": {
  "axkey:EncryptionKey": [
   {
    "Name": "My key name",
    "Description": "My key description",
    "token": "my_key",
    "Key": "00010203040506070809101112131415"
   }
  ]
 }
}

<soap:Envelope xmlns:soap="http://www.w3.org/2003/05/soap-envelope" xmlns:key="http://www.axis.com/vapix/ws/KeyStore">
<soap:Header/>
  <soap:Body>
    <key:SetEncryptionKey>
      <!--1 or more repetitions:-->
      <key:EncryptionKey token="my_key">
      <key:Key>00010203040506070809101112131415</key:Key>
      <!--Optional:-->
      <key:Name>My key name</key:Name>
      <!--Optional:-->
      <key:Description>My key description</key:Description>
      </key:EncryptionKey>
    </key:SetEncryptionKey>
  </soap:Body>
</soap:Envelope>

Step 2: Continue by configuring an IdPoint. Please refer to the IdPoint service for details:

{
 "axtid:SetIdPoint": {
  "IdPoint": [
   {
    "Name": "My OSDP SC IdPoint",
    "Action": "Access",
    "token": "osdp_sc_idpoint",
    "MaxPINSize": 4,
    "MinPINSize": 4
   }
  ]
 }
}

<soap:Envelope xmlns:soap="http://www.w3.org/2003/05/soap-envelope" xmlns:idp="http://www.axis.com/vapix/ws/IdPoint">
  <soap:Header/>
  <soap:Body>
    <idp:SetIdPoint>
      <!--1 or more repetitions:-->
      <idp:IdPoint token="osdp_sc_idpoint">
        <idp:Name>My OSDP SC IdPoint</idp:Name>
        <!--Optional:-->
        <idp:Description></idp:Description>
        <idp:Location></idp:Location>
        <idp:Area></idp:Area>
        <!--Optional:-->
        <idp:Action>Access</idp:Action>
        <!--Optional:-->
        <idp:MinPINSize>4</idp:MinPINSize>
        <!--Optional:-->
        <idp:MaxPINSize>4</idp:MaxPINSize>
        <!--Optional:-->
        <idp:EndOfPIN></idp:EndOfPIN>>
        <idp:Timeout></idp:Timeout>
        <idp:HeartbeatInterval></idp:HeartbeatInterval>
      </idp:IdPoint>
    </idp:SetIdPoint>
  </soap:Body>
</soap:Envelope>
<>

Once the IdPoint is set, add an IdPointConfiguration, using the same token as in the call to tid:SetIdPoint. Note that there are further parameters for SetIdPointConfiguration - only those relevant to OSDP secure channel configuration are shown here. Please refer to IdPoint Service API for details.

{
 "axtid:SetIdPointConfiguration": {
  "IdPointConfiguration": [
   {
    "token": "osdp_sc_idpoint",
    "Configuration": [
     {
      "Name": "IdPoint.Reader.Type",
      "Value": "RS-485HD"
     },
     {
      "Name": "IdPoint.RS-485HD.Protocol",
      "Value": "OSDP"
     },
     {
      "Name": "IdPoint.SecureChannel.KeyToken",
      "Value": "my_key"
     },
     {
      "Name": "IdPoint.SecureChannel.KeyType",
      "Value": "KeyBase"
     }
    ]
   }
  ]
 }
}

<soap:Envelope xmlns:soap="http://www.w3.org/2003/05/soap-envelope" xmlns:idp="http://www.axis.com/vapix/ws/IdPoint" xmlns:con="http://www.axis.com/vapix/ws/Config">
<soap:Header/>
  <soap:Body>
    <idp:SetIdPointConfiguration>
      <!--1 or more repetitions:-->
      <idp:IdPointConfiguration token="osdp_sc_idpoint">
      <idp:DeviceUUID></idp:DeviceUUID>
      <!--Zero or more repetitions:-->
      <idp:IdDataConfiguration></idp:IdDataConfiguration>
      <!--Zero or more repetitions:-->
        <idp:Configuration>
        <con:Name>IdPoint.Reader.Type</con:Name>
        <con:Value>RS-485HD</con:Value>
        </idp:Configuration>
        <idp:Configuration>
        <con:Name>IdPoint.RS-485HD.Protocol</con:Name>
        <con:Value>OSDP</con:Value>
        </idp:Configuration>
        <idp:Configuration>
        <con:Name>IdPoint.SecureChannel.KeyToken</con:Name>
        <con:Value>my_key</con:Value>
        </idp:Configuration>
        <idp:Configuration>
        <con:Name>IdPoint.SecureChannel.KeyType</con:Name>
        <con:Value>KeyBase</con:Value>
        </idp:Configuration>
      </idp:IdPointConfiguration>
    </idp:SetIdPointConfiguration>
  </soap:Body>
</soap:Envelope>

The IdPoint is now configured to use the key with the token my_key from the keystore (the value of this key is 00010203040506070809101112131415). We have also specified that we will use this key as a base key (no diversification using cUID). Valid values for KeyType are KeyBase, KeyMaster or None. Once the steps above have been completed, the rest of the setup may be done as usual, to get a working system (IO assignments, doors, access points, credentials and users).

Configuring an OSDP reader for a multidrop setup

For a multi-drop setup, each IdPointConfiguration shall be set to manual detection mode and specify the OSDP address of the corresponding reader.

Example for reader with address 0:

{
  "IdPointConfiguration": [
    {
      "token": "",
      "DeviceUUID": "",
      "IdDataConfiguration": [
        ""
      ],
      "Configuration": [
        {
          "Name": "IdPoint.Reader.Type",
          "Value": "RS-485HD"
        },
        {
          "Name": "IdPoint.RS-485HD.Protocol",
          "Value": "OSDP"
        },
        {
          "Name": "IdPoint.Hardware.Address",
           "Value": "0"
        },
        {
          "Name": "IdPoint.Hardware.DetectionMode",
          "Value": "Manual"
        }
      ]
    }
  ]
}

All IdPointConfigurations shall be assigned to the same serial port to which the readers are connected. See the I/O assignment service guide on how to assign multiple IoUsers to the  same I/O.

Note that the AXIS A1610 and A1210 support up to two OSDP readers per port. AXIS A1601 supports one OSDP reader per port.

Configuring a REX device

A REX device can be represented as a standalone IdPoint or be added to an IdPoint that already has a reader. It is possible to connect an unlimited amount of REX devices to the same IdPoint using the I/O Assignment service, see I/O assignment service guide.

Here is an example of an IdPoint that contains only a REX device. The REX device is active when the circuit is closed.

{"IdPointConfiguration": [{
  "token": "",
  "DeviceUUID": "",
  "IdDataConfiguration": [""],
  "Configuration": [ {"Name": "IdPoint.Reader.Type",
        "Value": "None"},
        {"Name": "IdPoint.REX.Type",
        "Value": "ActiveLow"} ]
  }]
}

<axtid:IdPointConfiguration token="">
  <axtid:Configuration>
    <axconf:Name>IdPoint.Reader.Type</axconf:Name>
    <axconf:Value>None</axconf:Value>
  </axtid:Configuration>
  <axtid:Configuration>
    <axconf:Name>IdPoint.REX.Type</axconf:Name>
    <axconf:Value>ActiveLow</axconf:Value>
  </axtid:Configuration>
  <axtid:DeviceUUID></axtid:DeviceUUID>
  <axtid:IdDataConfiguration></axtid:IdDataConfiguration>
</axtid:IdPointConfiguration>

When this has been set, a REX IoUser has been created for this IdPoint that can be assigned to one or more physical pins.

Setting up access card formats

The IdDataConfiguration data structure specifies access card formats. The structure contains a mapping of the access card’s binary data into key/value pairs as well as the binary data’s complete bit length. The mapping describes how to interpret the binary data bits.

Some access card formats are provided by default, for example the Wiegand 26-bit format (H10301). Use axtid:GetIdDataConfigurationList to retrieve the list of available configurations.

The IdPoint/Request/IdData event is sent when a person swipes his access card. The event contains raw data from the card in the Card field and the bit length of the raw data in the BitCount field. If the IdPoint has no assigned IdDataConfiguration, or if no assigned IdDataConfiguration matches the bit length, the event contains only the Card and BitCount fields.

IdDataFieldMap data structure

The general format for the IdDataFieldMap is <Format>, <Format>, ...<br/><br/>

where <Format> is described in the table below.

Available data field formats

Format	Meaning	Example
N	Bit N	7
M-N	Bit M-N	13–16
dB...B	Constant binary data	b0110
xX...X	Constant hexadecimal data	xF7D

All the chunks will then be added together to form the value of the map. The most common case will be to use a single M-N format for each IdDataFieldMap. The constant data is only useful for adapting to legacy systems.

The table below shows the available encodings.

Available data encodings

Encoding	Description	Length limit
BinLE2hex	Little-endian, encoded to lowercase hexadecimal	None
BinLEIBO2hex	Inversed byte order Little-endian, encoded to lowercase hexadecimal	None
BinBE2hex	Big-endian, encoded to lowercase hexadecimal	None
BinBEIBO2hex	Inversed byte order Big-endian, encoded to lowercase hexadecimal	None
Bin2Base64	Base64 encoded	None
BinIBO2Base64	Inversed byte order Base64 encoded	None
BinLE2Int	Little-endian, encoded to integer	64bit
BinLEIBO2Int	Inversed byte order Little-endian, encoded to integer	64bit
BinBE2Int	Big-endian, encoded to integer	64bit
BinBEIBO2Int	Inversed byte order Big-endian, encoded to integer	64bit

IdDataConfiguration example

This section is an example for the H10301 format.

The table shows the data field mapping. Note that the CardNrHex is supplied as an example to show that it is possible to use the same bits but with different encodings (compare with CardNr).

H10301 data field mapping

Map	Value	Encoding
EvenParity	1	BinLE2Int
FacilityCode	2–9	BinLE2Int
CardNr	10–25	BinLE2Int
CardNrHex	10–25	BinLE2hex
OddParity	26	BinLE2Int

Let us assume that the 26 bits received from the reader are:

1 0000 0000 0010 0111 1110 0101 1

This will generate key/value pairs as described in the table below. Note that the complete raw data is always automatically encoded as hexadecimal and supplied in the Card field.

Key/Value pairs example

Name	Value
Card	02004fcb
EvenParity	1
FacilityCode	0
CardNr	10213
CardNrHex	27e5
OddParity	1
BitCount	26

The complete axtid:SetIdDataConfiguration request would look like:

Request

{
  "axtid:SetIdDataConfiguration":{
    "IdDataConfiguration":[ {
      "token":"",
      "InputBitlength":26,
      "Name":"IdDataConfig example",
      "IdDataFieldMap": [ {
        "Map": "1-26",
        "Name": "FullCard",
        "Encoding":"BinLE2hex"
      },{
        "Map":"1",
        "Name":"ParityEven",
        "Encoding": "BinLE2Int"
      }, {
        "Map": "2-9",
        "Name": "FacilityCode",
        "Encoding": "BinLE2Int"
      }, {
        "Map":"10-25",
        "Name": "CardNr",
        "Encoding": "BinLE2Int"
      }, {
        "Map": "10-25",
        "Name": "CardNrHex",
        "Encoding":"BinLE2hex"
      },{
        "Map":"26",
        "Name": "ParityOdd",
        "Encoding": "BinLE2Int"
      } ],
    "Description":"Test Description" } ]
  }
}

Request

<axtid:SetIdDataConfiguration>
  <axtid:IdDataConfiguration token="">
    <axtid:Description>Test Description</axtid:Description>
    <axtid:IdDataFieldMap>
      <axtid:Encoding>BinLE2hex</axtid:Encoding>
      <axtid:Map>1-26</axtid:Map>
      <axtid:Name>FullCard</axtid:Name>
    </axtid:IdDataFieldMap>
    <axtid:IdDataFieldMap>
      <axtid:Encoding>BinLE2Int</axtid:Encoding>
      <axtid:Map>1</axtid:Map>
      <axtid:Name>ParityEven</axtid:Name>
    </axtid:IdDataFieldMap>
    <axtid:IdDataFieldMap>
      <axtid:Encoding>BinLE2Int</axtid:Encoding>
      <axtid:Map>2-9</axtid:Map>
      <axtid:Name>FacilityCode</axtid:Name>
    </axtid:IdDataFieldMap>
    <axtid:IdDataFieldMap>
      <axtid:Encoding>BinLE2Int</axtid:Encoding>
      <axtid:Map>10-25</axtid:Map>
      <axtid:Name>CardNr</axtid:Name>
    </axtid:IdDataFieldMap>
    <axtid:IdDataFieldMap>
      <axtid:Encoding>BinLE2hex</axtid:Encoding>
      <axtid:Map>10-25</axtid:Map>
      <axtid:Name>CardNrHex</axtid:Name>
    </axtid:IdDataFieldMap>
    <axtid:IdDataFieldMap>
      <axtid:Encoding>BinLE2Int</axtid:Encoding>
      <axtid:Map>26</axtid:Map>
      <axtid:Name>ParityOdd</axtid:Name>
    </axtid:IdDataFieldMap>
    <axtid:InputBitlength>26</axtid:InputBitlength>
    <axtid:Name>IdDataConfig example</axtid:Name>
  </axtid:IdDataConfiguration>
</axtid:SetIdDataConfiguration>

Getting card data from a reader

To get information about the last swiped card or other type of user token accepted by the reader, use the axtid:GetLastCredential API call. This will also be parsed using the IdDataConfiguration.

Request

{"axtid:GetLastCredential":{
  "Token": "idpoint1" }
}

Request

<axtid:GetLastCredential>
  <axtid:Token>idpoint1</axtid:Token>
</axtid:GetLastCredential>

Response

{"IdData":[
  {"Name": "FullCard", "Value":"02004fcb"},
  {"Name": "ParityEven","Value": "1"},
  {"Name": "FacilityCode","Value": "0"},
  {"Name": "CardNr","Value": "10213"},
  {"Name": "CardNrHex","Value": "27e5"},
  {"Name": "ParityOdd","Value": "1"},
  {"Name": "Card","Value": "02004fcb"},
  {"Name":"BitCount", "Value": "26"} ]
}

Response

<axtid:IdData Name="EvenParity" Value="1"></axtid:IdData>
<axtid:IdData Name="FacilityCode" Value="0"></axtid:IdData>
<axtid:IdData Name="CardNr" Value="10213"></axtid:IdData>
<axtid:IdData Name="CardNrHex" Value="27e5"></axtid:IdData>
<axtid:IdData Name="OddParity" Value="1"></axtid:IdData>
<axtid:IdData Name="Card" Value="02004fcb"></axtid:IdData>
<axtid:IdData Name="BitCount" Value="26"></axtid:IdData>

The Card and BitCount fields are always included, also if they are not in the IdDataConfiguration.

Sending activities from a remote device

Axis physical access control products support IP based remote activity input devices such as IP card readers , License Plate Recognition cameras and Wireless sensors via the Indicate Remote Activities API. This provide a way for most IP devices to simulate activities such as presenting credentials or REX (Request to exit) inputs such as Wiegand, OSDP (Open Supervised Device Protocol) or via wireless sensors.

One typical use-case is license plate recognition, where an Axis camera sends the license plate number to the Access Controller, which in turn decides if the vehicle should be granted access. Further examples can be a remote indication of card swipes, PIN inputs or REX button-presses.

Calling the IndicateRemoteActivities API triggers the same type of endpoint events as a user swiping a card against a card reader or pushing a REX button that is directly connected to and configured by the Access Controller.

For each activity, two IdPoint events are sent. The first event is tns1:IdPoint/tnsaxis:Activity for all supported activities. Params are mandatory for Activity-type Card and PIN, but not allowed for REX. For Activity-type PIN a param named ‘PIN’ is mandatory.

For each activity, two IdPoint events are sent, which are the same amount as for the wired Wiegand/OSDP reader.

The first event is tns1:IdPoint/tnsaxis:Activity for all supported activities.

The Reason field for this event is:

• CardPresented for activity-type Card
• REX for activity-type REX
• CodeEntered for activity-type PIN

The second event for each activity is:

• tns1:IdPoint/tnsaxis:Request/tnsaxis:IdData for activity-type Card
• tns1:IdPoint/tnsaxis:Request/tnsaxis:REX for activity-type REX
• tns1:IdPoint/tnsaxis:Request/tnsaxis:PIN for activity-type PIN

Examples

For more examples on how to use remote activities, see Indicating remote activities.

Considerations

A hardware configuration needs to be in place due to the IndicateRemoteActivities-request body requiring a valid IdPoint-token to be able to send the IdPoint events.

For detailed information about configuring the hardware, see AXIS A1001 and AXIS Entry Manager User Manual.

The second step is the access decision that will be triggered by the tns1:IdPoint/tnsaxis:Request event.

To get a positive access decision the following criteria need to be met:

1. The Name/Value pairs of the params in the API request need to match the Name/Value pairs of the IdData in a credential and have the same ordering. This credential needs to be associated with an AccessProfile, AccessPoint and IdPoint, that matches the ID and AuthenticationProfile as seen in Setting the credential.

2. Each Name in the Params of the IndicateRemoteActivities request must match the IdDataName in the IdFactor list of an AuthenticationProfile that is associated with either the Credential, AccessPoint or AccessProfile mentioned above. For additional information, see Setting the access point, Setting the access profile and Retrieve default configuration in the Access Control Service Guide.

If a Card and a PIN is expected from physical access control system all the following parameters are granted access:

• IndicateRemoteActivities (Card) + IndicateRemoteActivities (PIN) (Separate API requests)
• IndicateRemoteActivities (Card + PIN) (Same API request)
• IndicateRemoteActivities (PIN + Card) (Same API request)

But this can be denied access:

• IndicateRemoteActivities (PIN) + IndicateRemoteActivities (Card) (Separate API requests)

IdPoint service API

axtid = http://www.axis.com/vapix/ws/IdPoint

The IdPoint service handles identification points (IdPoints or IDP:s), which are typically card readers with keypads for pin code entry, but which could also be biometric readers. A Request-for-Exit button can also be seen as an IdPoint. Multiple physical readers/Identification Points can be handled by a service.

Use GetIdPointInfoList to get the list of IdPoints with brief information and capabilities. Use GetIdPointList to get the list of IdPoints and their configurations.

The IdPoint service sends events when there is activity, when a card is presented or pin is entered, etc. An Access Controller typically subscribes to these events and takes appropriate actions, e.g. unlocks a door. The FeedbackMessage function is used by the Access Controller to give feedback or annunciations to the user.

The way the identification data is to be interpreted and sent is assumed to be configurable in a vendor-specific way. By default, the IdData Name "Card" should be used to send card data as a lower case hex string. Keypad input is sent as IdData Name "PIN" as string, PIN:s can be alfanumeric. REX request is sent as IdData Name "REX" with the value "Active".

The IdPoint generates events with IdData encoded as SimpleItem in the Data: section of the Notification. Additional IdData entries can be configured in a vendor-specific way.

Please refer to the ONVIF Access Control specification for generic operation guidelines and design principles behind ONVIF PACS services family.

AxisConfig service

See AxisConfig service.

Service capabilities

axtid = http://www.axis.com/vapix/ws/IdPoint

An ONVIF compliant device shall provide service capabilities in two ways:

• With the GetServices method of the Device service when IncludeCapability is true. Please refer to the ONVIF Core Specification for more details.
• With the GetServiceCapabilities method.

Service capabilities data structure

The service capabilities reflect optional functionality of a service. The information is static and does not change during device operation. The following capabilities are available:

• SetIdPoint: True if SetIdPoint and SetIdPointList is supported.

GetServiceCapabilitiesCommand

This operation returns the capabilities of the IdPoint service.

An ONVIF compliant device which provides the IdPoint service shall implement this method.

GetServiceCapabilities command

• Name: GetServiceCapabilities
• Access Class: PRE_AUTH

Message name	Description
GetServiceCapabilitiesRequest	This message shall be empty.
GetServiceCapabilitiesResponse	This message contains: - Capabilities: The capabilities of the IdPoint serviceaxtid:ServiceCapabilities Capabilities [1][1]

IdPoint information

axtid = http://www.axis.com/vapix/ws/IdPoint

IdPointInfo data structure

The IdPointInfo type represents the IdPoint as a physical object. The structure contains information and capabilities of a specific idpoint instance. An ONVIF compliant device shall provide the following fields for each IdPoint instance:

• Token: A service-unique identifier of the IdPoint.
• Name: Name of the structure.
• Location: Text description of location of IdPoint.
• Area: The Area the IdPoint is in.
• Capabilities: The capabilities for this IdPoint.

To provide more information, the device may include the following optional field:

• Description: Description of the structure

IdPointCapabilities data structure

IdPointCapabilities reflect optional functionality of a particular physical entity. Different IdPoint instances may have different set of capabilities. This information may change during device operation, e.g. if hardware settings are changed. The following capabilities are available:

• Configurable: True if the IdPoint settings can be modified
• SupportCard: True if the IdPoint support reading Card data
• SupportPIN: True if the IdPoint support PIN/keypad entry.
• SupportREX: True if the IdPoint support/has a REX input.
• SupportBiometric: True if the IdPoint support/has some kind of Biometric input.
• SupportedMessageTypes: List of supported mime types for Message in FeedbackMessage function, e.g. text/plain - but may be an empty list.
• SupportedGraphicsTypes: List of supported mime types for Graphics in FeedbackMessage function, e.g. image/jpeg, image/png - but may be an empty list.
• SupportedAudioTypes: List of supported Audio formats in FeedbackMessage function, e.g. audio/basic, audio/mp3
• AdditionalCapabilities: General list of supported features, currently not specified in the specification.

GetIdPointInfoList command

This operation requests a list of all of IdPointInfo items provided by the device. An ONVIF compliant device which provides the IdPoint service shall implement this method.

The returned list shall start with the item specified by a StartReference parameter. If it is not specified by the client, the device shall return items starting from the beginning of the dataset.

StartReference is a device internal identifier used to continue fetching data from the last position, and shall allow a client to iterate over a large dataset in smaller chunks. The device shall be able to handle a reasonable number of different StartReferences at the same time and they must live for a reasonable time so that clients are able to fetch complete datasets.

An ONVIF compliant client shall not make any assumptions on StartReference contents and shall always pass the value returned from a previous request to continue fetching data. Client shall not use the same reference more than once.

For example, the StartReference can be incrementing start position number or underlying database transaction identifier.

The returned NextStartReference shall be used as the StartReference parameter in successive calls, and may be changed by device in each call.

The number of items returned shall not be greater than Limit parameter. If Limit parameter is not specified by the client, the device shall assume it unbounded. The number of returned elements is determined by the device and may be less than requested if the device is limited in its resources.

GetIdPointInfoList command

• Name: GetIdPointInfoList
• Access Class: READ_SYSTEM

Message name	Description
GetIdPointInfoListRequest	This message contains - Limit Maximum number of entries to return. If not specified, or higher than what the device supports, the number of items shall be determined by the device. - StartReference Start returning entries from this start reference. If not specified, entries shall start from the beginning of the dataset. xs:int Limit [0][1] xs:string StartReference [0][1]
GetIdPointInfoListResponse	This message contains - NextStartReference StartReference to use in next call to get the following items. If absent, no more items to get. - IdPointInfo List of IdPointInfo items. xs:string NextStartReference [0][1] axtid:IdPointInfo IdPointInfo [0][unbounded]

Fault codes	Description
env:Sender ter:InvalidArgVal ter:InvalidStartReference	StartReference is invalid or has timed out. Client need to start fetching from the beginning.

GetIdPointInfo command

This operation request a list of IdPointInfo items matching the given tokens. An ONVIF-compliant device that provides IdPoint service shall implement this method.

The device shall ignore tokens it cannot resolve and may return an empty list if there are no items matching specified tokens.

If the number of requested items is greater than the max limit supported, a TooManyItems fault shall be returned

GetIdPointInfo command

• Name: GetIdPointInfo
• Access Class: READ_SYSTEM

Message name	Description
GetIdPointInfoRequest	This message contains: - Token: Tokens of IdPointInfo items to get. pt:ReferenceToken Token [1][unbounded]
GetIdPointInfoResponse	This message contains: - IdPointInfo: List of IdPointInfo items. axtid:IdPointInfo IdPointInfo [0][unbounded]

Fault codes	Description
env:Sender ter:InvalidArgs ter:TooManyItems	Too many items were requested, see MaxLimit capability.

IdPoint configuration

axtid = http://www.axis.com/vapix/ws/IdPoint

IdPoint data structure

The IdPoint type provides the full configuration for an id point.

The following fields are available:

• Token: A service-unique identifier of the IdPoint.
• Name: Name of the structure.
• Location: Text description of location of IdPoint.
• Area: The Area the IdPoint is in.
• Timeout: Timeout between user interactions.
• HeartbeatInterval: The time between heartbeat event updates. A time of 0 means no heartbeat events.

To provide more information, the device may include the following optional fields:

• Description: Description of the structure.
• Action: The default action the IdPoint want to do. If not set, assume "Access".
• MinPINSize: Minimum number of characters in the PIN.
• MaxPINSize: Maximum number of characters in the PIN.
• EndOfPIN: String/character that ends a PIN and trigs sending of PIN.

GetIdPointList command

This operation requests a list of all of IdPoint items provided by the device. An ONVIF compliant device which provides the IdPoint service shall implement this method.

The returned list shall start with the item specified by a StartReference parameter. If it is not specified by the client, the device shall return items starting from the beginning of the dataset.

StartReference is a device internal identifier used to continue fetching data from the last position, and shall allow a client to iterate over a large dataset in smaller chunks. The device shall be able to handle a reasonable number of different StartReference:s at the same time and they must live for a reasonable time so that clients are able to fetch complete datasets.

An ONVIF compliant client shall not make any assumptions on StartReference contents and shall always pass the value returned from a previous request to continue fetching data. Client shall not use the same reference more than once.

For example, the StartReference can be incrementing start position number or underlying database transaction identifier.

The returned NextStartReference shall be used as the StartReference parameter in successive calls, and may be changed by device in each call.

The number of items returned shall not be greater than Limit parameter. If Limit parameter is not specified by the client, the device shall assume it unbounded. The number of returned elements is determined by the device and may be less than requested if the device is limited in its resources.

GetIdPointList command

• Name: GetIdPointList
• Access Class: READ_SYSTEM_SENSITIVE

Message name	Description
GetIdPointListRequest	This message contains - Limit Maximum number of entries to return. If not specified, or higher than what the device supports, the number of items shall be determined by the device. - StartReference Start returning entries from this start reference. If not specified, entries shall start from the beginning of the dataset. xs:int Limit [0][1] xs:string StartReference [0][1]
GetIdPointListResponse	This message contains - NextStartReference StartReference to use in next call to get the following items. If absent, no more items to get. - IdPointInfo List of IdPointInfo items. xs:string NextStartReference [0][1] axtid:IdPointInfo IdPointInfo [0][unbounded]

Fault codes	Description
env:Sender ter:InvalidArgVal ter:InvalidStartReference	StartReference is invalid or has timed out. Client need to start fetching from the beginning.

GetIdPoint command

This operation request a list of IdPoint items matching the given tokens. An ONVIF-compliant device that provides IdPoint service shall implement this method.

The device shall ignore tokens it cannot resolve and may return an empty list if there are no items matching specified tokens.

If the number of requested items is greater than the max limit supported, a TooManyItems fault shall be returned

GetIdPoint command

• Name: GetIdPoint
• Access Class: READ_SYSTEM_SENSITIVE

Message name	Description
GetIdPointRequest	This message contains: - Token: Tokens of IdPoint items to get. pt:ReferenceToken Token [1][unbounded]
GetIdPointResponse	This message contains: - IdPointI: List of IdPoint items. axtid:IdPoint IdPoint [0][unbounded]

Fault codes	Description
env:Sender ter:InvalidArgs ter:TooManyItems	Too many items were requested, see MaxLimit capability.

SetIdPoint command

Set a list of IdPoints. If the specified token in an IdPoint is empty, a new unique token is created by the service. If an IdPoint with the specified token already exist it will be updated. If the token does not exist, a new IdPoint is created. The list of supplied or created tokens is returned.

SetIdPoint command

• Name: SetIdPointList
• Access Class: READ_SYSTEM

Message name	Description
SetIdPointRequest	This message contains: - IdPoint: The list of IdPoints to set. axtid:IdPoint IdPoint [1][unbounded]
SetIdPointResponse	This message contains: - Token: Tokens of the added/updated IdPoints. pt:ReferenceToken Token [0][unbounded]

Fault codes	Description
env:Receiver ter:ActionNotSupported ter:NotSupported	Not allowed to create or modify the IdPoint
env:Sender ter:InvalidArgs

RemoveIdPoint command

Remove the IdPoints specified by the Tokens.

RemoveIdPoint command

• Name: RemoveIdPoint
• Access Class: WRITE_SYSTEM

Message name	Description
RemoveIdPointRequest	This message contains: - Token: Token of the IdPoint to remove. pt:ReferenceToken Token [1][unbounded]
RemoveIdPointResponse	This message shall be empty.

Fault codes	Description
env:Receiver ter:ActionNotSupported ter:NotSupported	Not allowed to remove the IdPoint.
env:Sender ter:InvalidArgVal ter:NotFound	IdPoint not found.

GetIdPointCapabilities command

GetIdPointCapabilities command

• Name: GetIdPointCapabilities
• Access Class: READ_CAPABILITIES

Message name	Description
GetIdPointCapabilitiesRequest	This message contains: - Token: Token of the IdPoint to get the capabilities forpt:ReferenceToken Token [1][1]
GetIdPointCapabilitiesResponse	This message contains: - IdPointCapabilities: The IdPointCapabilities matching the specified Tokenaxtid:IdPointCapabilities IdPointCapabilities [1][1]

Fault codes	Description
env:Sender ter:InvalidArgVal ter:NotFound	IdPoint not found

IdPoint feedback

axtid = http://www.axis.com/vapix/ws/IdPoint

IdPointFeedback data structure

The IdPointFeedback type enumerates the different type of feedback profiles. The actual implementation of these profiles is defined by the vendor and out of scope for ONVIF. Typically InvalidCredential, AccessDenied, Fault, Warning and Alarm would give "negative" feedback involving red LED and buzzer.

The following values are available:

• Other: The feedback mode is specified in some other defined way.
• Idle: Normal state - typically DoorLocked or DoorUnlocked is used instead (if the IdPoint controls a door).
• DoorLocked: Indicates that the Door is locked.
• DoorUnlocked: Indicates that the Door is unlocked.
• DoorOpenTooLong: Indicates that the Door is open too long.
• DoorPreAlarmWarning: Indicates that the Door soon is open too long.
• RequirePIN: PIN (Personal Identification Number/Code) is required.
• RequireCard: Card is required.
• Processing: Processing in progress.
• InvalidCredential: Credential is not valid.
• AccessGranted: Access is granted.
• AccessDenied: Access is denied.
• Ok: Generic Ok indication
• Fault: Generic fault indication
• Warning: Generic Warning indication.
• Alarm: Generic Warning indication.
• Custom: Some custom mode.

FeedbackMessage command

Control how the IdPoint specified by the Token should give feedback.

FeedbackMessage command

• Name: FeedbackMessage
• Access Class: ACTUATE

Message name	Description
FeedbackMessageRequest	This message contains: - Token: Token of the IdPoint to control. - Profile The IdPointFeedBack profile to use. - OtherProfile If Profile=Other, this field should contain the extended profile information. - Message Optional textual feedback message. - Graphics Optional graphical message. - Audio Optional audio message. pt:ReferenceToken Token [1][1] axtid:IdPointFeedback Profile [1][1] xs:string OtherProfile [0][1] xs:string Message [0][1] tt:BinaryData Graphics [0][1] tt:BinaryData Audio [0][1]
FeedbackMessageResponse	This message shall be empty.

Fault codes	Description
env:Sender ter:InvalidArgVal ter:NotFound	The specified token is not found.

IdPoint hardware configuration

axtid = http://www.axis.com/vapix/ws/IdPoint

IdPointConfiguration data structure

The device and hardware configuration for an IdPoint.

The following fields are available:

• Token: IdPoint Id to use for set, remove and usage.
• DeviceUUID: What device the IdPoint is on.
• IdDataConfiguration: Reference to the IdDataConfigurations to use.
• Configuration: Configuration for the IdPoint.

GetIdPointConfigurationList command

This operation requests a list of all of IdPointConfiguration items provided by the device. An ONVIF compliant device which provides the DoorControl service shall implement this method.

The returned list shall start with the item specified by a StartReference parameter. If it is not specified by the client, the device shall return items starting from the beginning of the dataset.

StartReference is a device internal identifier used to continue fetching data from the last position, and shall allow a client to iterate over a large dataset in smaller chunks. The device shall be able to handle a reasonable number of different StartReferences at the same time and they must live for a reasonable time so that clients are able to fetch complete datasets.

An ONVIF compliant client shall not make any assumptions on StartReference contents and shall always pass the value returned from a previous request to continue fetching data. Client shall not use the same reference more than once.

For example, the StartReference can be incrementing start position number or underlying database transaction identifier.

The returned NextStartReference shall be used as the StartReference parameter in successive calls, and may be changed by device in each call.

The number of items returned shall not be greater than Limit parameter. If Limit parameter is not specified by the client, the device shall assume it unbounded. The number of returned elements is determined by the device and may be less than requested if the device is limited in its resources.

GetIdPointConfigurationList command

• Name: GetIdPointConfigurationList
• Access Class: READ_SYSTEM_SENSITIVE

Message name	Description
GetIdPointConfigurationListRequest	This message contains - Limit Maximum number of entries to return. If not specified, or higher than what the device supports, the number of items shall be determined by the device. - StartReference Start returning entries from this start reference. If not specified, entries shall start from the beginning of the dataset. xs:int Limit [0][1] xs:string StartReference [0][1]
GetIdPointConfigurationListResponse	This message contains - NextStartReference StartReference to use in next call to get the following items. If absent, no more items to get. - IdPointConfiguration List of IdPointConfiguration items. xs:string NextStartReference [0][1] axtid:IdPointConfiguration IdPointConfiguration [0][unbounded]

Fault codes	Description
env:Sender ter:InvalidArgVal ter:InvalidStartReference	StartReference is invalid or has timed out. Client need to start fetching from the beginning.

GetIdPointConfiguration command

This operation request a list of IdPointConfiguration items matching the given tokens. An ONVIF-compliant device that provides IdPoint service shall implement this method.

The device shall ignore tokens it cannot resolve and may return an empty list if there are no items matching specified tokens.

If the number of requested items is greater than the max limit supported, a TooManyItems fault shall be returned.

GetIdPointConfiguration command

• Name: GetIdPointConfiguration
• Access Class: READ_SYSTEM_SENSITIVE

Message name	Description
GetIdPointConfigurationRequest	This message contains: - Token: Tokens of IdPointConfiguration items to get. pt:ReferenceToken Token [1][unbounded]
GetIdPointConfigurationResponse	This message contains: - IdPointConfiguration: List of IdPointConfiguration items. axtid:IdPointConfiguration IdPointConfiguration [0][unbounded]

Fault codes	Description
env:Sender ter:InvalidArgs ter:TooManyItems	Too many items were requested, see MaxLimit capability.

SetIdPointConfiguration command

Add/update a list of IdPointConfiguration items, the token in the IdPointConfiguration should typically refer to an existing IdPoint.

SetIdPointConfiguration command

• Name: SetIdPointConfiguration
• Access Class: WRITE_SYSTEM

Message name	Description
GeSetIdPointConfigurationRequest	This message contains: - IdPointConfiguration: The new versions of the IdPointConfiguration items. axtid:IdPointConfiguration IdPointConfiguration [1][unbounded]
GetISetIdPointConfigurationResponse	This message contains: - Token: Tokens of the added/updated IdPointConfiguration items. pt:ReferenceToken Token [0][unbounded]

Fault codes	Description
env:Sender ter:InvalidArgVal ter:InvalidIdPointConfigurationFault

RemoveIdPointConfiguration command

Remove the IdPointConfiguration items specified by the tokens. This is normally not needed, since when removing an IdPoint, the configuration is removed as well - although it's possible to create configurations without a corresponding IdPoint.

RemoveIdPointConfiguration command

• Name: RemoveIdPointConfiguration
• Access Class: WRITE_SYSTEM

Message name	Description
RemoveIdPointConfigurationRequest	This message contains: - Token: Token of the IdPointConfiguration items to remove. pt:ReferenceToken Token [1][unbounded]
RemoveIdPointConfigurationResponse	This message shall be empty.

Fault codes	Description
env:Sender ter:InvalidArgVal ter:NotFound	IdPointConfiguration not found.

GetIdPointConfigurationInfo command

Get the ConfigurationInfo for a single IdPoint specified by the token.

GetIdPointConfigurationInfo command

• Name: GetIdPointConfigurationInfo
• Access Class: READ_SYSTEM

Message name	Description
GetIdPointConfigurationInfoRequest	This message contains: - Token: Token of the IdPoint to get the ConfigurationInfo forpt:ReferenceTokenToken [1][1]
GetIdPointConfigurationInfoResponse	This message contains: - ConfigurationInfo: Configuration info for the specified tokenaxconf:ConfigurationInfo ConfigurationInfo [0][unbounded]

Fault codes	Description
env:Sender ter:InvalidArgVal ter:NotFound	IdPoint not found.

Reader functions

axtid = http://www.axis.com/vapix/ws/IdPoint

GetLastCredential command

Get the last entered credential on this reader.

GetLastCredential command

• Name: GetLastCredential
• Access Class: READ_SYSTEM_SENSITIVE

Message name	Description
GetLastCredentialRequest	This message contains: - Token: Token of the reader to get frompt:ReferenceToken Token [1][1]
GetLastCredentialResponse	This message contains: - IdData:tac:IdData IdData [0][unbounded]

Fault codes	Description
env:Sender ter:InvalidArgVal ter:ConfigurationNotFound	Configuration not found.

IdDataConfigurations

An IdDataConfiguration describes how the binary data from a reader shall be parsed into IdData Name/Values.

axtid = http://www.axis.com/vapix/ws/IdPoint

IdDataConfiguration data structure

Specifies a configuration of how to map binary data input from a card reader or keypad to Request event messages.

The following fields are available:

• token: Id used to reference the structure.
• Name: Name of the configuration.
• Description: Description of configuration.
• InputBitlength: The number of bits the input data must have to use this configuration.
• IdDataFieldMap: List of maps.

IdDataEncoding data structure

Specifies the different encoding of binary data possible.

The following values are available:

• Other: For extendability, the encoding is specified some other way.
• BinLE2hex: Binary data is encoded as hex-lowercase.
• BinBE2hex: Binary data is encoded as hex-lowercase.
• Bin2Base64: Binary data is encoded as base64.
• Bin2String: Binary ASCII data is encoded as an URL encoded string.
• BinLEBCD2String: Binary Little Endian BCD data is encoded as a numeric string.
• BinBEBCD2String: Binary Big Endian BCD data is encoded as a string-
• BinLE2Int: Binary data is encoded as an integer number, with Little Endian byte order.
• BinBE2Int: Binary data is encoded as an integer number, with Big Endian byte order.
• BinLEIBO2hex: Binary data with inversed byte order is encoded as hex-lowercase.
• BinBEIBO2hex: Binary data with inversed byte order is encoded as hex-lowercase.
• BinIBO2Base64: Binary data with inversed byte order is encoded as base64.
• BinIBO2String: Binary with inversed byte order ASCII data is encoded as an URL encoded string.
• BinLEIBO2Int: Binary data with inversed byte order is encoded as an integer number using Little Endian byte order.
• BinBEIBO2Int: Binary data with inversed byte order encoded as an integer number using Big Endian byte order.

IdDataFieldMap data structure

The configuration for how binary card data read by the IdPoint should be mapped to an IdData name and value.

The following fields are available:

• Name: Name of the IdData field (e.g. UserNbr, SiteCode, FacilityCode).
• Map: Location of the field in the binary carddata (e.g. b0101,10-25,3,5,7,1,2,4,xFEDEBEDA,). First bit is bit 1, that is the first received over e.g. a wiegand port. The symbol 0bBBB (e.g. 0b111) indicates a sequence of constant binary digits BBB. The symbol 0xh..h indicates a constant sequence of hex digits h..h. The hex digits is interpreted with MSB first. The symbol sSSSS indicates a constant string SSSS, if you want the comma character ',' use ,0x2c, which is the ASCII representation of comma.
• Encoding: How the resulting bits is encoded to a Value.

GetIdDataConfigurationList command

This operation requests a list of all of IdDataConfiguration items provided by the device. An ONVIF compliant device which provides the DoorControl service shall implement this method.

The returned list shall start with the item specified by a StartReference parameter. If it is not specified by the client, the device shall return items starting from the beginning of the dataset.

StartReference is a device internal identifier used to continue fetching data from the last position, and shall allow a client to iterate over a large dataset in smaller chunks. The device shall be able to handle a reasonable number of different StartReference:s at the same time and they must live for a reasonable time so that clients are able to fetch complete datasets.

An ONVIF compliant client shall not make any assumptions on StartReference contents and shall always pass the value returned from a previous request to continue fetching data. Client shall not use the same reference more than once.

For example, the StartReference can be incrementing start position number or underlying database transaction identifier.

The returned NextStartReference shall be used as the StartReference parameter in successive calls, and may be changed by device in each call.

The number of items returned shall not be greater than Limit parameter. If Limit parameter is not specified by the client, the device shall assume it unbounded. The number of returned elements is determined by the device and may be less than requested if the device is limited in its resources.

GetIdDataConfigurationList command

• Name: GetIdDataConfigurationList
• Access Class: READ_SYSTEM_SENSITIVE

Message name	Description
GetIdDataConfigurationListRequest	This message contains - Limit Maximum number of entries to return. If not specified, or higher than what the device supports, the number of items shall be determined by the device. - StartReference Start returning entries from this start reference. If not specified, entries shall start from the beginning of the dataset. xs:int Limit [0][1] xs:string StartReference [0][1]
GetIdDataConfigurationListResponse	This message contains - NextStartReference StartReference to use in next call to get the following items. If absent, no more items to get. - IdPointConfiguration List of IdPointConfiguration items. xs:string NextStartReference [0][1] axtid:IdPointConfiguration IdPointConfiguration [0][unbounded]

Fault codes	Description
env:Sender ter:InvalidArgVal ter:InvalidStartReference	StartReference is invalid or has timed out. Client need to start fetching from the beginning.

GetIdDataConfiguration command

This operation request a list of IdDataConfiguration items matching the given tokens. An ONVIF-compliant device that provides IdPoint service shall implement this method.

The device shall ignore tokens it cannot resolve and may return an empty list if there are no items matching specified tokens.

If the number of requested items is greater than the max limit supported, a TooManyItems fault shall be returned.

GetIdDataConfiguration command

• Name: GetIdDataConfiguration
• Access Class: READ_SYSTEM_SENSITIVE

Message name	Description
GetIdDataConfigurationRequest	This message contains: - Token: Tokens of IdDataConfiguration items to get. pt:ReferenceToken Token [1][unbounded]
GetIdDataConfigurationResponse	This message contains: - IdDataConfiguration: List of IdDataConfiguration items. axtid:IdDataConfiguration IdDataConfiguration [0][unbounded]

Fault codes	Description
env:Sender ter:InvalidArgs ter:TooManyItems	Too many items were requested, see MaxLimit capability.

SetIdDataConfiguration command

Set (adds or modifies) the supplied list of IdDataConfiguration items to the internal storage/database. If the token attribute is empty, a new unique token will be generated by the service. All supplied and generated tokens are returned.

SetIdDataConfiguration command

• Name: SetIdDataConfiguration
• Access Class: WRITE_SYSTEM

Message name	Description
SetIdDataConfigurationRequest	This message contains: - IdDataConfiguration: List of IdDataConfiguration items to set. axtid:IdDataConfiguration IdDataConfiguration [1][unbounded]
SetIdDataConfigurationResponse	This message contains: - Token: List of the supplied and generated tokens. pt:ReferenceToken Token [0][unbounded]

Fault codes	Description
env:Sender ter:InvalidArgVal ter:InvalidConfigurationFault

RemoveIdDataConfiguration command

Remove the specified IdDataConfiguration from storage.

RemoveIdDataConfiguration command

• Name: RemoveIdDataConfiguration
• Access Class: WRITE_SYSTEM

Message name	Description
RemoveIdDataConfigurationRequest	This message contains: - Token: List of tokens for the IdDataConfiguration items to remove If list is empty, no configurations will be removed. pt:ReferenceToken Token [1][unbounded]
RemoveIdDataConfigurationResponse	This message shall be empty.

Fault codes	Description
env:Sender ter:InvalidArgVal ter:NotFound

Feedback functions

axtid = http://www.axis.com/vapix/ws/IdPoint

GetFeedbackMessage command

Get the current feedback message status of an IdPoint.

GetFeedbackMessage command

• Name: GetFeedbackMessage
• Access Class: READ_SYSTEM_SENSITIVE

Message name	Description
GetFeedbackMessageRequest	This message contains: - Token: Token of the IdPoint to getpt:ReferenceToken Token [1][1]
GetFeedbackMessageResponse	This message contains: - Profile:axtid:IdPointFeedback Profile [1][1]

Fault codes	Description
env:Sender ter:InvalidArgVal ter:NotFound	IdPoint not found.

Secure Channel functions

Enumeration: SecureChannel

The type SecureChannel enumerates the different types of states for a secure channel.

The following values are available:

• Unknown: Unknown state
• ConnectionLost: The secure channel has stopped responding to communication
• ConnectionEstablished: A working secure channel is active
• NotSupported: Secure channel is not supported for this IdPoint
• NoKey: No valid key found for this IdPoint

SecureChannelStatus

SecureChannelStatus reflects the status of Secure Channel for an IdPoint. If Secure Channel is configured and working, then Active will be True, otherwise Active will be False, and the Reason field will contain additional status information. The following fields are available:

• Active: True if there is an active secure channel on the IdPoint
• Reason: Status of the secure channel

GetSecureChannelStatus Command

Get the current secure channel status for an IdPoint.

• Name: GetSecureChannelStatus
• Access Class: READ_SYSTEM_SENSITIVE

Message name	Description
GetSecureChannelStatusRequest	This message contains: - Token: Token of the IdPoint to getpt:ReferenceToken Token [1][1]
GetSecureChannelStatusResponse	This message contains: - SecureChannelStatus: Status of the specified IdPointaxtid:SecureChannelStatus SecureChannelStatus [1][1]

Fault codes	Description
env:Senderter:InvalidArgVal ter:NotFound	IdPoint not found

WhiteList functions

WhiteList entries are uploaded one by one to their respective locks. The progress of the WhiteList entry upload for one or several locks, or the state of each of the WhiteList entries, can be requested using axtid:GetIdPointWhiteList. On a similar note, the progress of the WhiteList entry upload for all locks, or the state of all WhiteList entries, can be requested by using axtid:GetIdPointWhiteListList. The response presents all WhiteList entries of each lock and their states. The following states are available:

• Active: An active WhiteList entry has been successfully uploaded to a lock and is currently in use.
• Invalid: An invalid WhiteList entry cannot be uploaded to a lock because its data is not valid.
• PendingAdd: A WhiteList entry that is not currently in use, but is waiting to be uploaded to a lock. Once it has been successfully uploaded, its state is changed to Active
• PendingRemove: A WhiteList entry that is currently in use, but is waiting to be removed from a lock.

GetIdPointWhiteList command

This operation request a list of IdPointWhiteList items matching the given tokens.

The device shall ignore tokens it cannot resolve and may return an empty list if there are no items matching specified tokens.

If the number of requested items is greater than the max limit supported, a TooManyItems fault shall be returned.

• Name: GetIdPointWhiteList
• Access Class: READ_SYSTEM_SENSITIVE

Message name	Description
GetIdPointWhiteListRequest	This message contains: - Token: Tokens of IdPointWhiteList items to get. pt: ReferenceToken Token [1][unbounded]
GetIdPointWhiteListResponse	This message contains: - IdPointWhiteList: List of IdPointWhiteList items. axtid: IdPointWhiteList IdPointWhiteList [0][unbounded]

Fault codes	Description
env: Senderter: InvalidArgster: TooManyItems	Too many items were requested, see MaxLimit capability.

GetIdPointWhiteListList command

This operation requests a list of all of the IdPointWhiteList items provided by the device.

The returned list should start with the item specified by a StartReference parameter. If it is not specified by the client, the device shall return items starting from the beginning of the dataset.

StartReference is a device used for internal identifier and is used to fetch data from the last position, allowing the client to iterate over a large dataset in smaller chunks. The device shall be able to handle a reasonable number of different StartReferences at the same time and they must live for a reasonable time so that clients are able to fetch complete datasets.

A client shall not make any assumptions on StartReference contents and shall always pass the value returned from a previous request to continue fetching data. The client shall not use the same reference more than once.

For example, the StartReference can increment the start position number or the underlaying database transaction identifier.

The returned NextStartReference shall be used as the StartReference parameter in successive calls and may be changed by the device in each call.

The number of items returned shall not be greater than the Limit parameter. If the Limit parameter is not specified by the client, the device will assume that it is unbounded. The number of returned elements is determined by the device and may be less than requested if the device is limited in its resources.

• Name: GetIdPointWhiteListList
• Access Class: READ_SYSTEM_SENSITIVE

Message name	Description
GetIdPointWhiteListListRequest	This message contains - Limit Maximum number of entries to return. If not specified, or the number is higher than what the device supports, the number of items shall be determined by the device. - StartReference Start returning entries from this start reference. If not specified, entries shall start from the beginning of the dataset. xs:int Limit [0][1] xs:string StartReference [0][1]
GetIdPointWhiteListListResponse	This message contains - NextStartReference WhichStartReferenceto use in the next call in order to get the following items. If absent, there are no more items left to get. - IdPointWhiteList "List of IdPointWhiteList items. xs:string NextStartReference [0][1] axtid:IdPointWhiteList IdPointWhiteList [0][unbounded]

Fault codes	Description
env: Sender ter: InvalidArgVal ter: InvalidStartReference	StartReferenceis invalid or has timed out. Client need to start fetching from the beginning.

Remote activity functions

NameValue

Generic construction containing a Name/Value pair.

The following fields are available:

• Name

• Value

Activity

The following fields are available:

• Type: Supported values for REX, Card and PIN
• Params: Custom fields for Request-event. Mandatory for type Card and PIN, but not allowed for REX. For type PIN a param named ‘PIN’ is mandatory.

IndicateRemoteActivities command

Applies activities for a remote IdPoint. For each activity two IdPoint events are sent.

The first event is tns1:IdPoint/tnsaxis:Activity for all supported activities.

The Reason field for this event is:

• CardPresented for activity-type Card
• REX for activity-type REX
• CodeEntered for activity-type PIN

The second event for each activity is:

• tns1:IdPoint/tnsaxis:Request/tnsaxis:IdData for activity-type Card

• tns1:IdPoint/tnsaxis:Request/tnsaxis:REX for activity-type REX

• tns1:IdPoint/tnsaxis:Request/tnsaxis:PIN for activity-type PIN

• Name: IndicateRemoteActivities

• Access Class: ACTUATE

Message name	Description
IndicateRemoteActivitiesRequest	This message contains: - Token": Token of the IdPoint to indicate activities for. - Description Description field added to the events that is sent. - Activities Activity array. - Attributes Attributes used to extend the API in the future without changing the signature. Not currently in use. pt: ReferenceToken TOKEN [1][1] xs: String Description [0][1] axtid: ActivityActivities [1][unbounded] axtid:NameValue Attributes [0][unbounded]
IndicateRemoteActivitiesResponse	This message shall be empty.

Fault codes	Description
env: Senderter: InvalidArgValter: NotFound	IdPoint not found.
