Decoder 2

The VAPIX ® Decoder2 API consist of multiple CGIs' that can be used to query status and configurations on the Axis decoders.

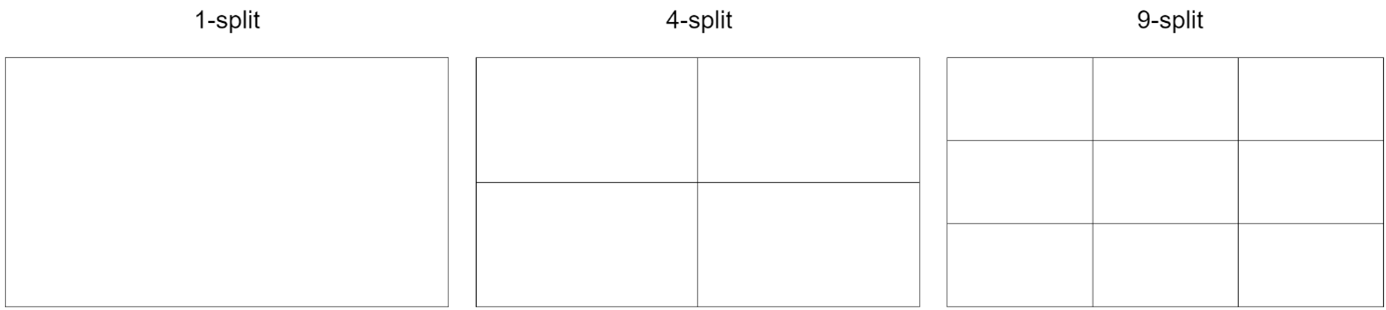

The sequence configuration that can be uploaded will define the view(s) of the decoder. One view will fill the entire screen, but it is possible to split the view into several layouts such as:

These layouts are only examples, and other layouts can be created by through this API.

View configuration The view is divided into one or more segments. Each segment consists of a pane, a media source (live video, local playback or picture) and the end of the playback action.

The coordinate system for the view has its origin in the upper left corner (0.0, 0.0).
The view is one unit wide one unit high, which gives the coordinates for the bottom right corner 1.0, 1.0 and the center of the view 0.5, 0.5.
The end playback action will determine the behavior of the pane whenever its media source ends (such as when the end of a video file is reached).
The pane describes where the media source should be drawn in the corresponding view and is defined by its left, right, top and bottom in the views coordinate system.

Put multiple views together to create a sequence with a run-time measured in seconds. If several views are defined in the sequence, the decoder will switch to the next view when the view time expires and return to the first view when the last view is finished. The decoder will also switch to the next view at the end of a playback if that action is selected.

Views setup

Overview

Identification

API Discovery: id=decoder, version=3.0

Obsoletes

This API makes the Decoder API obsolete.

Limitations

This API supports Axis Decoder products released 2023 and later, with AXIS OS version 12.2 or later.

Use cases

Configure live video media source(s)

Configure a device with a call to create in the External IP Device Information API. This call will return an externalIPDeviceInfoId that should be used to set new media sources.

The externalIPDeviceInfoId is required to communicate with the device in a secure way, since the ID makes it possible for the decoder to get the user/password for the device. See External IP Device Information API for additional details.

Configure a media source with a call to setMediaSources. http://myserver/axis-cgi/decoder/mediasource.cgi

The externalIPDeviceStreamParameters method makes it possible to configure Axis media sources, such as the resolution, which in this example is set to 1280x720.

Parse the JSON response to retrieve the media source ID(s). The media source can now be used in the sequence configuration with the reference to the mediaSourceId.

Get available media source configurations

Use getMediaSources to get the media source configuration.

http://myserver/axis-cgi/decoder/mediasource.cgi

Parse the JSON response the retrieve the media source(s) configuration.

Delete media source(s) configuration

Use deleteMediaSource to delete a media source configuration.

http://myserver/axis-cgi/decoder/mediasource.cgi

Parse the JSON response to see if the operation was successful.

Display a single view with a single media source

Use setSequence to create a sequence configuration.

http://myserver/axis-cgi/decoder/layout.cgi

Parse the JSON response to retrieve the sequence ID.
Use playSequence to start the playback.

http://myserver/axis-cgi/decoder/player.cgi

Since it is only a single view it will be played until a stop command is sent.

Parse the JSON response to see if the operation was successful.

Display a single view with multiple media sources

Use setSequence to create a sequence configuration.

http://myserver/axis-cgi/decoder/layout.cgi

Parse the JSON response to retrieve the sequence ID.
Start the playback of the sequence with a call to playSequence.

http://myserver/axis-cgi/decoder/player.cgi

Since it is only a single view it will be played until a stop command is sent.

Parse the JSON response to see if the operation was successful.

Display multiple views with multiple media sources

Use setSequence to create a sequence configuration.

http://myserver/axis-cgi/decoder/layout.cgi

Parse the JSON response to retrieve the sequence ID.
Start the playback of the sequence with a call to playSequence.

http://myserver/axis-cgi/decoder/player.cgi

Since it has multiple views, a view change will be triggered when the duration of each view is reached, until the sequence receives a stop command.

Parse the JSON response to see if the operation was successful.

Get sequence configuration

Use getSequence to retrieve a sequence configuration.

http://myserver/axis-cgi/decoder/layout.cgi

Parse the JSON response to retrieve the sequence configuration.

List available sequences

Use listSequence to create a list of all sequences.

http://myserver/axis-cgi/decoder/layout.cgi

Parse the JSON response to retrieve the list of sequence IDs.

Delete sequence configuration

Use deleteSequence to delete a sequence configuration.

http://myserver/axis-cgi/decoder/layout.cgi

Parse the JSON response to see if the operation was successful.

Stop one sequence and start another one

Use setSequence to create a sequence configuration.

http://myserver/axis-cgi/decoder/layout.cgi

Parse the JSON response to retrieve the sequence ID.
Repeat steps 1-2.
Use playSequence to start the playback of the sequence.

http://myserver/axis-cgi/decoder/player.cgi

Since it is multiple views, a view change will be triggered when the duration is reached until a stop command is sent.

Parse the JSON response to see if the operation was successful.
Use stopSequence to stop the playback.

http://myserver/axis-cgi/decoder/player.cgi

Parse the JSON response to see if the operation was successful.
Use playSequence to start the playback of the next sequence.

http://myserver/axis-cgi/decoder/player.cgi

Since it is multiple views, a view change will be triggered when the duration is reached until a stop command is sent.

Parse the JSON response to see if the operation was successful.

Get the current position in an active sequence

Use getCurrentPosition to retrieve the current position.

http://myserver/axis-cgi/decoder/player.cgi

Parse the JSON response to retrieve the currently active view.

Fetch the capabilities of a camera on the network

Use getCameraCapabilities to fetch the capabilities of a specific Axis camera.

http://myserver/axis-cgi/decoder/decodercapabilities.cgi

Parse the JSON response to retrieve the capabilities of the camera.

Check if the capabilities can be fetched over an unencrypted connection

Use getUnsecureConnectionAllowed to check if HTTP connections are allowed when communicating with other devices.

http://myserver/axis-cgi/decoder/decodercapabilities.cgi

Parse the JSON response to retrieve whether it is possible to use HTTP to communicate with other devices.

Enable or disable unsecure connections when fetching capabilities

Use setUnsecureConnectionAllowed to enabled or disable HTTP connections.

http://myserver/axis-cgi/decoder/decodercapabilities.cgi

Parse the JSON response to verify if the operation did not return an error.

Pause and resume sequence

Use pauseSequence to pause view changes in the current sequence.

http://myserver/axis-cgi/decoder/player.cgi

Use resumeSequence to resume view changes in the current sequence.

http://myserver/axis-cgi/decoder/player.cgi

Play a media source and resume a sequence

Use playMediaSource to play a media source.

http://myserver/axis-cgi/decoder/player.cgi

Use resumeSequence to resume the current sequence.

http://myserver/axis-cgi/decoder/player.cgi

Play the next view in the current sequence

Use playNextView to play the next view.

http://myserver/axis-cgi/decoder/player.cgi

Play the previous view in the current sequence

Use playPreviousView to play the previous view.

http://myserver/axis-cgi/decoder/player.cgi

Play any view in the current sequence

Use playView to play a view.

http://myserver/axis-cgi/decoder/player.cgi

Play any view in any sequence

Use playView to play from a specified view in a sequence.

http://myserver/axis-cgi/decoder/player.cgi

Temporarily play a sequence and then resume the current sequence

Use playView start playing a specific view in a sequence and then return to the current sequence.

http://myserver/axis-cgi/decoder/player.cgi

Stop a media source that is playing as an alarm

Use stopMediaSource to stop a media source and go back to the previous sequence.

http://myserver/axis-cgi/decoder/player.cgi

API Specification - Layout

setSequence

This method shall be used to create the sequence configuration. It is possible to configure single/multiple views and multiple media sources in different layouts, depending on the capabilities of the decoder.

Some examples of supported layouts are:

Please note that these layouts are only examples. Other layouts can be created with this API.

The view is divided into one or more segments, each consisting of a pane, media source (live video, local playback or picture) and an end of playback action. The coordinate system for the view has its origin in the upper left corner (0.0, 0.0). A view is one unit wide and one unit high, which will give the bottom right corner the coordinates 1.0, 1.0 and the center of the view 0.5, 0.5.

The pane describes where the media source should be drawn in a corresponding view and is defined by its left, right, top and bottom in the views coordinate system. The end of the playback action will determine the behavior of the pane whenever its media source ends, such as reaching the end of a video file. There are four possible settings for the end of the playback action:

triggerError: Shows a default error image on the segment instead of the previous media.
triggerFreezePlayback: Stops media playback and shows the last frame.
triggerNextView: Switches to the next view or return to the first view if currently on the last view.
triggerRestartPlayback: Restarts a given media playback from the beginning. Useful when you want to loop media files.

Putting multiple views together will create a sequence with a run time (duration) measured in seconds. If several views are defined in the sequence, the decoder will switch to the next view when a view time expires, or return to the first view when the last one is finished. The decoder will switch to the next view at the end of a playback if the action triggerNextView is selected. If view duration is shorter than file duration, the decoder will switch view before finishing the playback by ignoring the end of the playback action. Similarly, if the file duration is shorter than the view duration, the decoder will switch view at the end of a playback by ignoring the view duration.

Request

Create a new or update an existing sequence.

If id is provided and a sequence with that id already exists then the old configuration will be updated. If id is provided and no sequence with that id exists then the configuration will be created with the supplied id.

Create a sequence with a single view and media source

{
  "apiVersion": "2.0",
  "method": "setSequence",
  "params": {
    "name": "A Sequence Name",
    "views": [
      {
        "duration": 30,
        "segments": [
          {
            "mediaSourceId": 0,
            "actionOnPlaybackEnd": "triggerRestartPlayback",
            "pane": {
              "left": 0,
              "top": 0,
              "right": 1,
              "bottom": 1
            }
          }
        ]
      }
    ]
  }
}

Create a sequence with a single view and multiple media sources

{
  "apiVersion": "2.0",
  "method": "setSequence",
  "params": {
    "name": "A Sequence Name",
    "views": [
      {
        "duration": 30,
        "segments": [
          {
            "mediaSourceId": 0,
            "actionOnPlaybackEnd": "triggerRestartPlayback",
            "pane": {
              "left": 0,
              "top": 0,
              "right": 0.5,
              "bottom": 0.5
            }
          },
          {
            "mediaSourceId": 1,
            "pane": {
              "left": 0.5,
              "top": 0,
              "right": 1,
              "bottom": 0.5
            }
          },
          {
            "mediaSourceId": 2,
            "pane": {
              "left": 0,
              "top": 0.5,
              "right": 0.5,
              "bottom": 1
            }
          },
          {
            "mediaSourceId": 5,
            "actionOnPlaybackEnd": "triggerNextView",
            "pane": {
              "left": 0.5,
              "top": 0.5,
              "right": 1,
              "bottom": 1
            }
          }
        ]
      }
    ]
  }
}

Create a sequence with multiple views and multiple media sources

{
  "apiVersion": "2.0",
  "method": "setSequence",
  "params": {
    "name": "A Sequence Name",
    "views": [
      {
        "duration": 30,
        "segments": [
          {
            "mediaSourceId": 0,
            "actionOnPlaybackEnd": "triggerRestartPlayback",
            "pane": {
              "left": 0,
              "top": 0,
              "right": 0.5,
              "bottom": 0.5
            }
          },
          {
            "mediaSourceId": 1,
            "pane": {
              "left": 0.5,
              "top": 0,
              "right": 1,
              "bottom": 0.5
            }
          },
          {
            "mediaSourceId": 2,
            "pane": {
              "left": 0,
              "top": 0.5,
              "right": 0.5,
              "bottom": 1
            }
          },
          {
            "mediaSourceId": 5,
            "actionOnPlaybackEnd": "triggerNextView",
            "pane": {
              "left": 0.5,
              "top": 0.5,
              "right": 1,
              "bottom": 1
            }
          }
        ]
      },
      {
        "duration": 60,
        "segments": [
          {
            "mediaSourceId": 4,
            "actionOnPlaybackEnd": "triggerFreezePlayback",
            "pane": {
              "left": 0,
              "top": 0,
              "right": 0.5,
              "bottom": 0.5
            }
          },
          {
            "mediaSourceId": 6,
            "actionOnPlaybackEnd": "triggerError",
            "pane": {
              "left": 0.5,
              "top": 0,
              "right": 1,
              "bottom": 0.5
            }
          },
          {
            "mediaSourceId": 7,
            "pane": {
              "left": 0,
              "top": 0.5,
              "right": 0.5,
              "bottom": 1
            }
          },
          {
            "mediaSourceId": 8,
            "pane": {
              "left": 0.5,
              "top": 0.5,
              "right": 1,
              "bottom": 1
            }
          }
        ]
      },
      {
        "duration": 120,
        "segments": [
          {
            "mediaSourceId": 9,
            "pane": {
              "left": 0,
              "top": 0,
              "right": 0.5,
              "bottom": 0.5
            }
          },
          {
            "mediaSourceId": 10,
            "pane": {
              "left": 0.5,
              "top": 0,
              "right": 1,
              "bottom": 0.5
            }
          },
          {
            "mediaSourceId": 3,
            "actionOnPlaybackEnd": "triggerError",
            "pane": {
              "left": 0,
              "top": 0.5,
              "right": 0.5,
              "bottom": 1
            }
          },
          {
            "mediaSourceId": 4,
            "actionOnPlaybackEnd": "triggerError",
            "pane": {
              "left": 0.5,
              "top": 0.5,
              "right": 1,
              "bottom": 1
            }
          }
        ]
      }
    ]
  }
}

Responses

Successful response

{
  "apiVersion": "2.0",
  "method": "setSequence",
  "data": {
    "id": 0
  }
}

Error response

{
  "apiVersion": "2.0",
  "method": "setSequence",
  "error": {
    "code": 1100,
    "message": "Internal error"
  }
}

See Parameter descriptions for a detailed parameter list.

getSequence

Fetch the configuration for a specific sequence.

Request

{
  "apiVersion": "2.0",
  "context": "my context",
  "method": "getSequence",
  "params": {
    "id": 1
  }
}

Responses

Successful response

{
  "apiVersion": "2.0",
  "method": "getSequence",
  "data": {
    "name": "A Sequence Name",
    "views": [
      {
        "duration": 30,
        "segments": [
          {
            "mediaSourceId": 0,
            "actionOnPlaybackEnd": "triggerRestartPlayback",
            "pane": {
              "left": 0,
              "top": 0,
              "right": 0.5,
              "bottom": 0.5
            }
          },
          {
            "mediaSourceId": 1,
            "actionOnPlaybackEnd": "triggerFreeze",
            "pane": {
              "left": 0.5,
              "top": 0,
              "right": 1,
              "bottom": 0.5
            }
          },
          {
            "mediaSourceId": 2,
            "actionOnPlaybackEnd": "triggerError",
            "pane": {
              "left": 0,
              "top": 0.5,
              "right": 0.5,
              "bottom": 1
            }
          },
          {
            "mediaSourceId": 5,
            "actionOnPlaybackEnd": "triggerNextView",
            "pane": {
              "left": 0.5,
              "top": 0.5,
              "right": 1,
              "bottom": 1
            }
          }
        ]
      },
      {
        "duration": 60,
        "segments": [
          {
            "mediaSourceId": 4,
            "actionOnPlaybackEnd": "triggerFreezePlayback",
            "pane": {
              "left": 0,
              "top": 0,
              "right": 0.5,
              "bottom": 0.5
            }
          },
          {
            "mediaSourceId": 6,
            "actionOnPlaybackEnd": "triggerError",
            "pane": {
              "left": 0.5,
              "top": 0,
              "right": 1,
              "bottom": 0.5
            }
          },
          {
            "mediaSourceId": 7,
            "actionOnPlaybackEnd": "triggerError",
            "pane": {
              "left": 0,
              "top": 0.5,
              "right": 0.5,
              "bottom": 1
            }
          },
          {
            "mediaSourceId": 8,
            "actionOnPlaybackEnd": "triggerError",
            "pane": {
              "left": 0.5,
              "top": 0.5,
              "right": 1,
              "bottom": 1
            }
          }
        ]
      },
      {
        "duration": 120,
        "segments": [
          {
            "mediaSourceId": 9,
            "actionOnPlaybackEnd": "triggerError",
            "pane": {
              "left": 0,
              "top": 0,
              "right": 0.5,
              "bottom": 0.5
            }
          },
          {
            "mediaSourceId": 10,
            "actionOnPlaybackEnd": "triggerError",
            "pane": {
              "left": 0.5,
              "top": 0,
              "right": 1,
              "bottom": 0.5
            }
          },
          {
            "mediaSourceId": 3,
            "actionOnPlaybackEnd": "triggerError",
            "pane": {
              "left": 0,
              "top": 0.5,
              "right": 0.5,
              "bottom": 1
            }
          },
          {
            "mediaSourceId": 4,
            "actionOnPlaybackEnd": "triggerError",
            "pane": {
              "left": 0.5,
              "top": 0.5,
              "right": 1,
              "bottom": 1
            }
          }
        ]
      }
    ]
  }
}

Error response

{
  "apiVersion": "2.0",
  "method": "getSequence",
  "error": {
    "code": 1100,
    "message": "Internal error"
  }
}

See Parameter descriptions for a detailed parameter list.

listSequence

Fetch the identifiers for all sequence configurations.

Request

{
  "apiVersion": "2.0",
  "context": "my context",
  "method": "listSequences"
}

Responses

Successful response

{
  "apiVersion": "2.0",
  "method": "listSequences",
  "data": {
    "sequences": [
      {
        "name": "A Sequence Name",
        "id": 1,
        "duration": 360
      },
      {
        "name": "A Sequence Name 2",
        "id": 2,
        "duration": 240
      },
      {
        "name": "A Sequence Name 3",
        "id": 3,
        "duration": 120
      }
    ]
  }
}

Error response

{
  "apiVersion": "2.0",
  "method": "listSequences",
  "error": {
    "code": 1100,
    "message": "Internal error"
  }
}

See Parameter descriptions for a detailed parameter list.

deleteSequence

Delete a specific sequence configuration.

Request

{
  "apiVersion": "2.0",
  "method": "deleteSequence",
  "params": {
    "id": 0
  }
}

Responses

Successful response

{
  "apiVersion": "2.0",
  "method": "deleteSequence",
  "data": {}
}

Error response

{
  "apiVersion": "2.0",
  "method": "deleteSequence",
  "error": {
    "code": 1100,
    "message": "Internal error"
  }
}

See Parameter descriptions for a detailed parameter list.

API Specification - Media source

setMediaSources

Create a media sources configuration from one of the following categories:

stream: The substructure stream should be added and configured. This category can also consist of the following alternatives:
- axisStream: Used when the device ID refers to an Axis camera. com.axis.camera must be added to manufacturer and be configured with externalIPDeviceStreamParameters.
- 3rdPartyStream: Used when the device ID refers to a 3rd party camera. other must be added to manufacturer and be configured with videoUri.
file: The substructure file should be added and configured.

Request

{
  "apiVersion": "2.0",
  "context": "my context",
  "method": "setMediaSources",
  "params": {
    "mediaSources": [
    {
        "mediaSourceId": 10,
        "name": "baker street",
        "description": "Camera at baker street",
        "hasAudio": false,
        "mediaSourceType": "stream",
        "stream": {
          "externalIPDeviceInfoId": "1701335688966-dac8ff0a-09de-abfb-83cf-753ad2f760f8",
          "manufacturer": "com.axis.camera",
          "externalIPDeviceStreamParameters": "camera=1&resolution=1920x1080&fps=25&videocodec=h264"
        }
    },
    {
        "mediaSourceId": 12,
        "name": "baker street",
        "description": "Camera at baker street",
        "hasAudio": false,
        "mediaSourceType": "stream",
        "stream": {
          "externalIPDeviceInfoId": "1701335688966-dac8ff0a-09de-abfb-83cf-753ad2f760f9",
          "manufacturer": "other",
          "videoUri": "rtsp://192.168.0.90/axis-media/media.amp?camera=1&resolution=1280x720&fps=30&videocodec=h264"
        }
    },
    {
        "mediaSourceId": 11,
        "name": "media sources 1",
        "description": "Description 1",
        "hasAudio": false,
        "mediaSourceType": "file",
        "file": {
          "fileId": "USB/imagename.jpg"
        }
      }
    ]
  }
}

Responses

Successful response

{
  "apiVersion": "2.0",
  "context": "my context",
  "method": "setMediaSources",
  "data": {
    "ids": [
      10,
      11,
      12
    ]
  }
}

Error response

{
  "apiVersion": "2.0",
  "method": "setMediaSources",
  "error": {
    "code": 1100,
    "message": "Internal error"
  }
}

See Parameter descriptions for a detailed parameter list.

getMediaSources

Get configuration information for all configured media sources.

Request

{
  "apiVersion": "2.0",
  "context": "my context",
  "method": "getMediaSources"
}

Responses

Successful response

{
  "apiVersion": "2.0",
  "context": "my context",
  "method": "getMediaSources",
  "data": {
    "mediaSources": [
    {
        "mediaSourceId": 10,
        "name": "baker street",
        "description": "Camera at baker street",
        "hasAudio": false,
        "mediaSourceType": "stream",
        "stream": {
          "externalIPDeviceInfoId": "1701335688966-dac8ff0a-09de-abfb-83cf-753ad2f760f8",
          "manufacturer": "com.axis.camera",
          "externalIPDeviceStreamParameters": "camera=1&resolution=1920x1080&fps=25&videocodec=h264"
        }
    },
    {
        "mediaSourceId": 12,
        "name": "baker street",
        "description": "Camera at baker street",
        "hasAudio": false,
        "mediaSourceType": "stream",
        "stream": {
          "externalIPDeviceInfoId": "1701335688966-dac8ff0a-09de-abfb-83cf-753ad2f760f9",
          "manufacturer": "other",
          "videoUri": "rtsp://192.168.0.90/axis-media/media.amp?camera=1&resolution=1280x720&fps=30&videocodec=h264"
        }
    },
    {
        "mediaSourceId": 11,
        "name": "media sources 1",
        "description": "Description 1",
        "hasAudio": false,
        "mediaSourceType": "file",
        "file": {
          "fileId": "USB/imagename.jpg"
        }
      }
    ]
  }
}

Error response

{
  "apiVersion": "2.0",
  "method": "getMediaSources",
  "error": {
    "code": 1100,
    "message": "Internal error"
  }
}

See Parameter descriptions for a detailed parameter list.

deleteMediaSources

Delete one or several media source configuration(s).

info

Please note that the system will not check if a media source is used when executing this method.

Request

{
  "apiVersion": "2.0",
  "method": "deleteMediaSources",
  "params": {
    "ids": [
      0,
      10,
      11
    ]
  }
}

Responses

Successful response

{
  "apiVersion": "2.0",
  "context": "my context",
  "method": "deleteMediaSources"
}

Error response

{
  "apiVersion": "2.0",
  "method": "deleteMediaSources",
  "error": {
    "code": 1100,
    "message": "Internal error"
  }
}

See Parameter descriptions for a detailed parameter list.

API Specification - Player

playSequence

Trigger a sequence playback.

Request

{
  "apiVersion": "2.0",
  "method": "playSequence",
  "params": {
    "id": 0,
    "viewIndex": 1,
    "resumeTimeout": 3600
  }
}

Responses

Successful response

{
  "apiVersion": "2.0",
  "method": "playSequence",
  "data": {}
}

Error response

{
  "apiVersion": "2.0",
  "method": "playSequence",
  "error": {
    "code": 1100,
    "message": "Internal error"
  }
}

See Parameter descriptions for a detailed parameter list.

stopSequence

Stop the sequence playback.

Request

{
  "apiVersion": "2.0",
  "method": "stopSequence"
}

Responses

Successful response

{
  "apiVersion": "2.0",
  "method": "stopSequence",
  "data": {}
}

Error response

{
  "apiVersion": "2.0",
  "method": "stopSequence",
  "error": {
    "code": 1100,
    "message": "Internal error"
  }
}

See Parameter descriptions for a detailed parameter list.

pauseSequence

Pause the sequence. The current view will continue to play, but will not change to the next view.

Request

{
  "apiVersion": "2.0",
  "method": "pauseSequence",
  "params": {
    "resumeTimeout": 60
  }
}

Responses

Successful response

{
  "apiVersion": "2.0",
  "method": "pauseSequence",
  "data": {}
}

Error response

{
  "apiVersion": "2.0",
  "method": "pauseSequence",
  "error": {
    "code": 1100,
    "message": "Internal error"
  }
}

See Parameter descriptions for a detailed parameter list.

resumeSequence

Resume the playback for a sequence.

Request

{
  "apiVersion": "2.0",
  "method": "resumeSequence"
}

Responses

Successful response

{
  "apiVersion": "2.0",
  "method": "resumeSequence",
  "data": {}
}

Error response

{
  "apiVersion": "2.0",
  "method": "resumeSequence",
  "error": {
    "code": 1100,
    "message": "Internal error"
  }
}

See Parameter descriptions for a detailed parameter list.

playMediaSource

Play a media source during a time specified by this request. This will interrupt the currently playing sequence, which will resume from its previous position when the playback request is finished. It is possible to add several request after each other into a combined view.

Request

{
  "apiVersion": "2.0",
  "context": "my context",
  "method": "playMediaSource",
  "params": {
    "highResolutionId": 0,
    "mediumResolutionId": 1,
    "lowResolutionId": 2,
    "resumeTimeout": 20,
    "priority": "medium",
    "combineMediaSources": true
  }
}

Responses

Successful response

{
  "apiVersion": "2.0",
  "method": "playMediaSource",
  "data": {}
}

Error response

{
  "apiVersion": "2.0",
  "method": "playMediaSource",
  "error": {
    "code": 1100,
    "message": "Internal error"
  }
}

See Parameter descriptions for a detailed parameter list.

stopMediaSource

Stop a media source that is playing as an alarm. If it is the only media source playing, the original sequence will be resumed.

Request

{
  "apiVersion": "2.0",
  "context": "my context",
  "method": "stopMediaSource",
  "params": {
    "highResolutionId": 0
  }
}

Responses

Successful response

{
  "apiVersion": "2.0",
  "method": "stopMediaSource",
  "data": {}
}

Error response

{
  "apiVersion": "2.0",
  "method": "stopMediaSource",
  "error": {
    "code": 1100,
    "message": "Internal error"
  }
}

See Parameter descriptions for a detailed parameter list.

playNextView

Play the next view in the currently playing sequence.

Request

{
  "apiVersion": "2.0",
  "context": "my context",
  "method": "playNextView"
}

Responses

Successful response

{
  "apiVersion": "2.0",
  "context": "my context",
  "method": "playNextView"
}

Error response

{
  "apiVersion": "2.0",
  "method": "playNextView",
  "error": {
    "code": 1100,
    "message": "Internal error"
  }
}

See Parameter descriptions for a detailed parameter list.

playPreviousView

Play the previous view in the currently playing sequence.

Request

{
  "apiVersion": "2.0",
  "context": "my context",
  "method": "playPreviousView"
}

Responses

Successful response

{
  "apiVersion": "2.0",
  "context": "my context",
  "method": "playPreviousView"
}

Error response

{
  "apiVersion": "2.0",
  "method": "playPreviousView",
  "error": {
    "code": 1100,
    "message": "Internal error"
  }
}

See Parameter descriptions for a detailed parameter list.

playView

Play any view in the currently playing sequence.

Request

{
  "apiVersion": "2.0",
  "context": "my context",
  "method": "playView",
  "params": {
    "viewIndex": 0
  }
}

Responses

Successful response

{
  "apiVersion": "2.0",
  "context": "my context",
  "method": "playView"
}

Error response

{
  "apiVersion": "2.0",
  "method": "playView",
  "error": {
    "code": 1100,
    "message": "Internal error"
  }
}

See Parameter descriptions for a detailed parameter list.

getCurrentPosition

Get the sequence ID , active view index and played time of the active view.

Request

{
  "apiVersion": "2.0",
  "method": "getCurrentPosition"
}

Responses

Successful response

{
  "apiVersion": "2.0",
  "method": "getCurrentPosition",
  "data": {
    "sequenceId": 1,
    "sequenceIndex": 4,
    "currentViewTime": 20
  }
}

Error response

{
  "apiVersion": "2.0",
  "method": "getCurrentPosition",
  "error": {
    "code": 1100,
    "message": "Internal error"
  }
}

See Parameter descriptions for a detailed parameter list.

API Specification - Capabilities

getCameraCapabilities

Fetches the capabilities of the selected Axis camera.

Request

{
  "apiVersion": "2.0",
  "context": "my context",
  "method": "getCameraCapabilitiesRequest",
  "params": {
    "externalIPDeviceInfoId": "1674718420952-92736ff4-6a25-84ba-035f-4285c5744c9c"
  }
}

Responses

Successful response

{
  "apiVersion": "2.0",
  "method": "getCameraCapabilities",
  "data": {
    "codec": [
      "h264",
      "h265"
    ],
    "audioSources": [
      {
        "audioSourceIndex": "0",
        "enabled": "yes",
        "codec": "aac",
        "inputType": "mic",
        "name": "Audio"
      }
    ],
    "videoSources": [
      {
        "imageGroupIndex": "0",
        "name": "Camera 1",
        "source": "0",
        "enabled": "yes",
        "maxFPS": "25",
        "resolution": [
          "3840x2160",
          "1920x1080",
          "800x600"
        ]
      }
    ]
  }
}

Error response

{
  "apiVersion": "2.0",
  "method": "getCameraCapabilities",
  "error": {
    "code": 1100,
    "message": "Internal error"
  }
}

See Parameter descriptions for a detailed parameter list.

getDecoderCapabilities

Get the decoder capabilities.

Request

{
  "apiVersion": "2.0",
  "context": "my context",
  "method": "getDecoderCapabilitiesRequest"
}

Responses

Successful response

{
  "apiVersion": "2.0",
  "context": "my context",
  "method": "getDecoderCapabilities",
  "data": {
    "resolutions": [
      "3840x2160@30",
      "3840x2160@25",
      "1920x1080@60",
      "1920x1080@50",
      "1920x1080@30",
      "1920x1080@25",
      "1280x720@60",
      "1280x720@50"
    ],
    "maxVPUInstances": 8,
    "maxStreams": 9,
    "streamingProtocols": [
      "rtspt",
      "rtsph",
      "rtspsh"
    ],
    "audioCodingFormats": [
      "G.711",
      "G.726",
      "OPUS",
      "MP3",
      "AAC-LC",
      "WAV",
      "ADPCM",
      "LPCM"
    ],
    "videoCodingFormats": [
      "H.264",
      "H.265"
    ],
    "imageCodingFormats": [
      "jpeg",
      "png"
    ],
    "mediaTypes": [
      "video/webm",
      "video/x-matroska",
      "video/quicktime",
      "video/mp4",
      "image/jpeg",
      "image/png"
    ]
  }
}

Error response

{
  "apiVersion": "2.0",
  "method": "getDecoderCapabilities",
  "error": {
    "code": 1100,
    "message": "Internal error"
  }
}

See Parameter descriptions for a detailed parameter list.

getUnsecureConnectionAllowed

Check if the camera capabilities can be fetched over an unencrypted connection.

Request

{
  "apiVersion": "2.0",
  "context": "my context",
  "method": "getUnsecureConnectionAllowedRequest"
}

Responses

Successful response

{
  "apiVersion": "2.0",
  "method": "getUnsecureConnectionAllowed",
  "data": {
    "UnsecureConnectionAllowed": true
  }
}

Error response

{
  "apiVersion": "2.0",
  "method": "getUnsecureConnectionAllowed",
  "error": {
    "code": 1100,
    "message": "Internal error"
  }
}

See Parameter descriptions for a detailed parameter list.

SetUnsecureConnectionAllowed

Enable or disable unsecure connections when fetching camera capabilities.

Request

{
  "apiVersion": "2.0",
  "context": "my context",
  "method": "SetUnsecureConnectionAllowedRequest",
  "params": {
    "UnsecureConnectionAllowed": true
  }
}

Responses

Successful response

{
  "apiVersion": "2.0",
  "method": "setUnsecureConnectionAllowed",
  "data": {}
}

Error response

{
  "apiVersion": "2.0",
  "method": "setUnsecureConnectionAllowed",
  "error": {
    "code": 1100,
    "message": "Internal error"
  }
}

See Parameter descriptions for a detailed parameter list.

API Specification - Line-out Control

setEnabled

Enable or disable audio playback through the line-out port.

Request

{
  "apiVersion": "2.0",
  "context": "my context",
  "method": "setEnabled",
  "params": {
    "enabled": true
  }
}

Responses

*Successful response

{
  "apiVersion": "2.0",
  "method": "setEnabled",
  "data": {}
}

Error response

{
  "apiVersion": "2.0",
  "method": "setEnabled",
  "error": {
    "code": 1100,
    "message": "Internal error"
  }
}

See Parameter descriptions for a detailed parameter list.

getEnabled

Check if line-out port is enabled or disabled.

Request

{
  "apiVersion": "2.0",
  "context": "my context",
  "method": "getEnabled"
}

Responses

Successful response

{
  "apiVersion": "2.0",
  "method": "getEnabled",
  "data": {
    "enabled": true
  }
}

Error response

{
  "apiVersion": "2.0",
  "method": "getEnabled",
  "error": {
    "code": 1100,
    "message": "Internal error"
  }
}

See Parameter descriptions for a detailed parameter list.

Parameter descriptions

setSequence parameters

Request

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version that is used in the request.
`context=<string>` Optional	my context	The user sets this value in the request and the application will echo it back in the response.
`method="setSequence"`		The API method that is called in the request.
`params`		Container for the `params` parameters.
`id=<integer>`		The sequence ID. Existing configurations with this ID will be updated. Minimum: 0 Maximum: 24
`name=string`		The sequence name. Max length: 64
`views`		Container for the `views` parameters.
`duration=<integer>`	10	The view's duration, measured in seconds (1s to 24h). Valid values: Minimum: 1s Maximum: 86400 (24h). On single view sequences, duration is ignored.
`segments`		Container for the `segments` parameters.
`mediaSourceId=<number>`	10	The media source ID. Minimum: 0 Maximum: 999
`actionOnPlaybackEnd=<string>`	`triggerFreezePlayback`	The behavior of the pane at the playback end. Will default to `triggerFreezePlayback` if not provided. Valid values: `triggerError` `triggerFreezePlayback` `triggerNextView` `triggerRestartPlayback`
`pane`		Container for the `pane` parameters.
`left=<number>`	0.5	The coordinates for a pane. Left edge is 0, middle 0.5 and the right one is 1. Valid values: Minimum: 0 Maximum: 1
`right=<number>`	0.5	The coordinates for a pane. Left edge is 0, middle 0.5 and the right one is 1. Valid values: Minimum: 0 Maximum: 1
`bottom=<number>`	0.5	The coordinates for a pane. Top edge is 0, middle 0.5 and the bottom one is 1. Valid values: Minimum: 0 Maximum: 1
`top=<number>`	0.5	The coordinates for a pane. Top edge is 0, middle 0.5 and the bottom one is 1. Valid values: Minimum: 0 Maximum: 1

Response

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version used in the request.
`context=<string>` Optional	my context	The context set by the user in the request.
`method="setSequence"`		The requested API method.
`data`		Container for the `data` parameters.
`id=<integer>`		The ID of the sequence created or edited in the request.

getSequence parameters

Request

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version that is used in the request.
`context=<string>` Optional	my context	The user sets this value in the request and the application will echo it back in the response.
`method="getSequence"`		The API method that is called in the request.
`params`		Container for the `params` parameters.
`id=<integer>`		The sequence ID.

Response

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version used in the request.
`context=<string>` Optional	my context	The context set by the user in the request.
`method="getSequence"`		The requested API method.
`data`		Container for the `data` parameters.
`id=<integer>`	10	The sequence ID. Existing configurations with this ID are updated. Valid values: Minimum: 0 Maximum: 24
`name=<string>`	Sequence 1	The sequence name. Max length: 64
`views`		Container for the `views` parameters.
`duration=<integer>`	10	The view's duration, measured in seconds (1s to 24h). Valid values: Minimum: 1s Maximum: 86400 (24h). On single view sequences, duration is ignored.
`segments`		Container for the `segments` parameters.
`mediaSourceId=<number>`	10	The media source ID. Minimum: 0 Maximum: 999
`actionOnPlaybackEnd=<string>`	`triggerFreezePlayback`	The behavior of the pane at the playback end. Valid values: `triggerError` `triggerFreezePlayback` `triggerNextView` `triggerRestartPlayback`
`pane`		Container for the `pane` parameters.
`left=<number>`	0.5	The coordinates for a pane. Left edge is 0, middle 0.5 and the right one is 1. Valid values: Minimum: 0 Maximum: 1
`right=<number>`	0.5	The coordinates for a pane. Left edge is 0, middle 0.5 and the right one is 1. Valid values: Minimum: 0 Maximum: 1
`bottom=<number>`	0.5	The coordinates for a pane. Top edge is 0, middle 0.5 and the bottom one is 1. Valid values: Minimum: 0 Maximum: 1
`top=<number>`	0.5	The coordinates for a pane. Top edge is 0, middle 0.5 and the bottom one is 1. Valid values: Minimum: 0 Maximum: 1

listSequences parameters

Request

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version that is used in the request.
`context=<string>` Optional	my context	The user sets this value in the request and the application will echo it back in the response.
`method="listSequences"`		The API method that is called in the request.

Response

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version used in the request.
`context=<string>` Optional	my context	The context set by the user in the request.
`method="listSequences"`		The requested API method.
`data`		Container for the `data` parameters.
`sequences`		Container for the `data` parameters.
`id=<integer>`	10	The sequence ID. Existing configurations with this ID are updated. Valid values: Minimum: 0 Maximum: 24
`name=<string>`	Sequence 1	The sequence name. Max length: 64
`duration=<integer>`	10	The view's duration, measured in seconds (1s to 24h). Valid values: Minimum: 1s Maximum: 86400 (24h). On single view sequences, duration is ignored.

deleteSequence parameters

Request

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version that is used in the request.
`context=<string>` Optional	my context	The user sets this value in the request and the application will echo it back in the response.
`method="deleteSequence"`		The API method that is called in the request.
`params`		Container for the `params` parameters.
`id=<integer>`		The sequence ID.
`forceSWDecoder=<boolean>` Optional	false	Use software decoding instead of the VPU for this mediasource. When creating a view with more than the maximum VPU instances, extra sources must use software decoding.

Response

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version used in the request.
`context=<string>` Optional	my context	The context set by the user in the request.
`method="deleteSequence"`		The requested API method.
`data`		Container for the `data` parameters.

setMediaSources parameters

Request

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version that is used in the request.
`context=<string>` Optional	my context	The user sets this value in the request and the application will echo it back in the response.
`method="setMediaSources"`		The API method that is called in the request.
`params`		Container for the `params` parameters.
`mediaSources`		Container for the `mediaSources` parameters.
`mediaSourceId`=	10	The media source ID. Valid values: Minimum: 0 Maximum: 999
`name=<string>`	media sources 1	The media source name. Max length: 64.
`description=<string>`	Description 1	The media source description. Max length: 250.
`hasAudio=<boolean>`	false	Set to `true` if audio should be enabled for the media source. Valid values: `true` `false`
`mediaSourceType=<string>`	`stream`	If the media source is a stream, use `stream`. If the media source is a file, use `file`.
`stream`		Container for the `stream` parameters.
`externalIPDeviceInfoId=<string>`	`1701335688966-dac8ff0a-09de-abfb-83cf-753ad2f760f8`	The ID of the external IP device info.
`manufacturer=<string>`	`com.axis.camera`	Modifies decoder behavior. Non-axis devices must use the value `other`. Valid values: `com.axis.camera` `other`
`externalIPDeviceStreamParameters=<string>`	`camera=1&resolution=1920x1080&fps=25&videocodec=h264`	Parameters for the stream. Should only be used when writing `com.axis.camera` in the decoder.
`videoUri=<string>`	`rtsp://192.168.0.90/axis-media/media.amp?camera=1&resolution=1280x720&fps=30&videocodec=h264`	The video URI. Max length: 255. Only for third party cameras that uses the setting `other`.
`file`		Container for the `file` parameters.
`fileId=<string>`	`USB/imagename.jpg`	The media source ID.

Response

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version used in the request.
`context=<string>` Optional	my context	The context set by the user in the request.
`method="setMediaSources"`		The requested API method.
`data`		Container for the `data` parameters.
`ids=<integer>`		The IDs of the media sources that were created.

getMediaSources parameters

Request

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version that is used in the request.
`context=<string>` Optional	my context	The user sets this value in the request and the application will echo it back in the response.
`method="getMediaSources"`		The API method that is called in the request.

Response

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version used in the request.
`context=<string>` Optional	my context	The context set by the user in the request.
`method="getMediaSources"`		The requested API method.
`data`		Container for the `data` parameters.
`mediaSources`		Container for the `mediaSources` parameters.
`mediaSourceId`=	10	The media source ID. Valid values: Minimum: 0 Maximum: 999
`name=<string>`	media sources 1	The media source name. Max length: 64.
`description=<string>`	Description 1	The media source description. Max length: 250.
`hasAudio=<boolean>`	false	Set to `true` if audio should be enabled for the media source. Valid values: `true` `false`
`mediaSourceType=<string>`	`stream`	If the media source is a stream, use `stream`. If the media source is a file, use `file`.
`stream`		Container for the `stream` parameters.
`externalIPDeviceInfoId=<string>`	`1701335688966-dac8ff0a-09de-abfb-83cf-753ad2f760f8`	The ID of the external IP device info.
`manufacturer=<string>`	`com.axis.camera`	Customizes the code. Non-axis devices must use the value `other`. Valid values: `com.axis.camera` `com.axis.acs`
`externalIPDeviceStreamParameters=<string>`	`camera=1&resolution=1920x1080&fps=25&videocodec=h264`	Parameters for the stream. Should only be used when writing `com.axis.camera` in the decoder.
`videoUri=<string>`	`rtsp://192.168.0.90/axis-media/media.amp?camera=1&resolution=1280x720&fps=30&videocodec=h264`	The video URI. Max length: 255
`file`		Container for the `file` parameters.
`fileId=<string>`	`USB/imagename.jpg`	The media source ID.

deleteMediaSources parameters

Request

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version that is used in the request.
`context=<string>` Optional	my context	The user sets this value in the request and the application will echo it back in the response.
`method="deleteMediaSources"`		The API method that is called in the request.
`params`		Container for the `params` parameters.
`ids=<integer>`	0	The ID of the media sources that should be deleted.

Response

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version used in the request.
`context=<string>` Optional	my context	The context set by the user in the request.
`method="deleteMediaSources"`		The requested API method.

playSequence parameters

Request

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version that is used in the request.
`context=<string>` Optional	my context	The user sets this value in the request and the application will echo it back in the response.
`method="playSequence"`		The API method that is called in the request.
`params`		Container for the `params` parameters.
`id=<integer>`		The sequence ID.
`viewIndex=<integer>` Optional		The view index to start playing from.
`resumeTimeout=<integer>` Optional		The number of seconds the new sequence should play before resuming the currently playing sequence.

Response

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version used in the request.
`context=<string>` Optional	my context	The context set by the user in the request.
`method="playSequence"`		The requested API method.

stopSequence parameters

Request

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version that is used in the request.
`context=<string>` Optional	my context	The user sets this value in the request and the application will echo it back in the response.
`method="stopSequence"`		The API method that is called in the request.

Response

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version used in the request.
`context=<string>` Optional	my context	The context set by the user in the request.
`method="stopSequence"`		The requested API method.

pauseSequence parameters

Request

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version that is used in the request.
`context=<string>` Optional	my context	The user sets this value in the request and the application will echo it back in the response.
`method="pauseSequence"`		The API method that is called in the request.
`params`		Container for the `params` parameters.
`resumeTimeout=<integer>` Optional		Timeout in seconds before resuming the previous sequence.

Response

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version used in the request.
`context=<string>` Optional	my context	The context set by the user in the request.
`method="pauseSequence"`		The requested API method.

resumeSequence parameters

Request

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version that is used in the request.
`context=<string>` Optional	my context	The user sets this value in the request and the application will echo it back in the response.
`method="resumeSequence"`		The API method that is called in the request.

Response

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version used in the request.
`context=<string>` Optional	my context	The context set by the user in the request.
`method="resumeSequence"`		The requested API method.

playMediaSource parameters

Request

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version that is used in the request.
`context=<string>` Optional	my context	The user sets this value in the request and the application will echo it back in the response.
`method="playMediaSource"`		The API method that is called in the request.
`params`		Container for the `params` parameters.
`highResolutionId=<integer>`	0	A media source ID that is suited for a single stream.
`mediumResolutionId=<integer>`	1	A media source ID that is suited to play alongside half the maximum simultaneous streams.
`lowResolutionId=<integer>`	2	A media source ID that is suited to play alongside the maximum simultaneous streams.
`resumeTimeout=<integer>` Optional	20	Resume the timeout in seconds, after which the interrupted sequence will resume.
`priority=<string>`	`medium`	If more than one media source is requested, `priority` will tell which one will be played. Valid values: `high` `medium` `low`
`combineMediaSources=<boolean>`	`true`	If more than one media source is requested, they can be shown side by side on the view if all requests have `combineMediaSource` set to`true`.

Response

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version used in the request.
`context=<string>` Optional	my context	The context set by the user in the request.
`method="playMediaSource"`		The requested API method.

stopMediaSource parameters

Request

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version that is used in the request.
`context=<string>` Optional	my context	The user sets this value in the request and the application will echo it back in the response.
`method="stopMediaSource"`		The API method that is called in the request.
`params`		Container for the `params` parameters.
`highResolutionId=<integer>`	0	The ID of the media source that should be stopped.

Response

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version used in the request.
`context=<string>` Optional	my context	The context set by the user in the request.
`method="stopMediaSource"`		The requested API method.

playNextView parameters

Request

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version that is used in the request.
`context=<string>` Optional	my context	The user sets this value in the request and the application will echo it back in the response.
`method="playNextView"`		The API method that is called in the request.

Response

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version used in the request.
`context=<string>` Optional	my context	The context set by the user in the request.
`method="playNextView"`		The requested API method.

playPreviousView parameters

Request

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version that is used in the request.
`context=<string>` Optional	my context	The user sets this value in the request and the application will echo it back in the response.
`method="playPreviousView"`		The API method that is called in the request.

Response

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version used in the request.
`context=<string>` Optional	my context	The context set by the user in the request.
`method="playPreviousView"`		The requested API method.

playView parameters

Request

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version that is used in the request.
`context=<string>` Optional	my context	The user sets this value in the request and the application will echo it back in the response.
`method="playView"`		The API method that is called in the request.
`params`		Container for the `params` parameters.
`viewIndex=<integer>` Optional	0	What index in the currently playing sequence that should be played.

Response

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version used in the request.
`context=<string>` Optional	my context	The context set by the user in the request.
`method="playView"`		The requested API method.

getCurrentPosition parameters

Request

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version that is used in the request.
`context=<string>` Optional	my context	The user sets this value in the request and the application will echo it back in the response.
`method="getCurrentPosition"`		The API method that is called in the request.

Response

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version used in the request.
`context=<string>` Optional	my context	The context set by the user in the request.
`method="getCurrentPosition"`		The requested API method.
`data`		Container for the `data` parameters.
`sequenceId=<integer>`	1	The sequence ID. Valid values: Minimum: 0 Maximum: 24
`sequenceIndex=<integer>`	4	The index for the active view. Valid values: Minimum: 0 Maximum: 999
`currentViewTime=<integer>`	15	The amount of time, in seconds, that the active view has been playing.

getCameraCapabilities parameters

Request

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version that is used in the request.
`context=<string>` Optional	my context	The user sets this value in the request and the application will echo it back in the response.
`method="getCameraCapabilities"`		The API method that is called in the request.
`params`		Container for the `params` parameters.
`externalIPDeviceInfoId=<string>`	`1674718420952-92736ff4-6a25-84ba-035f-4285c5744c9c`	The external IP device info ID.

Response

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version used in the request.
`context=<string>` Optional	my context	The context set by the user in the request.
`method="getCameraCapabilities"`		The requested API method.
`data`		Container for the `data` parameters.
`codec=<string>`	`List [ "h264", "h265" ]`	Specifies the compression format used for video encoding. Valid values: `H.264` `H.265`
`audioSources`		Container for the `audioSources` parameters.
`audioSourceIndex=string`	0
`enabled=<string>`	yes
`codec=<string>`	aac
`inputType=<string>`	mic
`name=<string>`	Audio
`videoSources`		Container for the `videoSources` parameters.
`imageGroupIndex=<string>`	0
`name=<string>`	name0
`source=<string>`	0
`enabled=<string>`	yes
`maxFPS=<string>`	60
`resolution=<string>`	`List [ "720x480", "720x576", "1280x720", "1920x1080" ]`

getDecoderCapabilities parameters

Request

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version that is used in the request.
`context=<string>` Optional	my context	The user sets this value in the request and the application will echo it back in the response.
`method="getDecoderCapabilities"`		The API method that is called in the request.

Response

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version used in the request.
`context=<string>` Optional	my context	The context set by the user in the request.
`method="getDecoderCapabilities"`		The requested API method.
`data`		Container for the `data` parameters.
`resolutions=<string>`	`List [ "3840x2160@30", "3840x2160@25", "1920x1080@60", "1920x1080@50", "1920x1080@30", "1920x1080@25", "1280x720@60", "1280x720@50" ]`	The list of resolutions supported by the HDMI port.
`maxstreams=<integer>`	8
`streamingProtocols=<string>`	`List [ "rtspt", "rtsph", "rtspsh" ]`
`audioCodingFormats=<string>`	`List [ "G.711", "G.726", "OPUS", "MP3", "AAC-LC", "WAV", "ADPCM", "LPCM" ]`
`videoCodingFormats=<string>`	`List [ "H.264", "H.265" ]`
`imageCodingFormats=<string>`	`List [ "jpeg", "png" ]`
`mediaTypes=<string>`	`List [ "video/webm", "video/x-matroska", "video/quicktime", "video/mp4", "image/jpeg", "image/png" ]`

getUnsecureConnectionAllowed parameters

Request

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version that is used in the request.
`context=<string>` Optional	my context	The user sets this value in the request and the application will echo it back in the response.
`method="getUnsecureConnectionAllowed"`		The API method that is called in the request.

Response

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version used in the request.
`context=<string>` Optional	my context	The context set by the user in the request.
`method="getUnsecureConnectionAllowed"`		The requested API method.
`data`		Container for the `data` parameters.
`UnsecureConnectionAllowed=<boolean>`	`true`	Checks if unsecure connections are allowed. Valid values: `true` `false`

setUnsecureConnectionAllowed parameters

Request

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version that is used in the request.
`context=<string>` Optional	my context	The user sets this value in the request and the application will echo it back in the response.
`method="setUnsecureConnectionAllowed"`		The API method that is called in the request.
`params`		Container for the `params` parameters.
`UnsecureConnectionAllowed=<boolean>`		Checks if unsecured connections are allowed.

Response

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version used in the request.
`context=<string>` Optional	my context	The context set by the user in the request.
`method="setUnsecureConnectionAllowed"`		The requested API method.

setEnabled parameters

Request

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version that is used in the request.
`context=<string>` Optional	my context	The user sets this value in the request and the application will echo it back in the response.
`method="setEnabled"`		The API method that is called in the request.
`params`		Container for the `params` parameters.
`enabled=<boolean>`		Sets the line-out port to enabled or disabled.

Response

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version used in the request.
`context=<string>` Optional	my context	The context set by the user in the request.
`method="setEnabled"`		The requested API method.

getEnabled parameters

Request

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version that is used in the request.
`context=<string>` Optional	my context	The user sets this value in the request and the application will echo it back in the response.
`method="getEnabled"`		The API method that is called in the request.

Response

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version used in the request.
`context=<string>` Optional	my context	The context set by the user in the request.
`method="getEnabled"`		The requested API method.
`data`		Container for the `data` parameters.
`enabled=<boolean>`	`true`	Whether the line-out port is enabled or disabled. Valid values: `true` `false`

Error response parameters

Parameter	Example value	Description
`apiVersion=<string>`	2.0	The API version used in the request.
`context=<string>` Optional	my context	The context set by the user in the request.
`method=<string>`		The requested API method.
`error.code=<integer>`	`1100`	The error code.
`error.message=<string>`	Internal error.	The error message for the corresponding error code.

General error codes

Error code	Description
`2100`	API version not supported.
`2101`	Invalid JSON.
`2102`	Method not supported.
`2103`	Required parameter missing.
`2104`	Invalid parameter value specified.
`2105`	Authorization failed.

Overview​

Identification​

Obsoletes​

Limitations​

Use cases​

Configure live video media source(s)​

Get available media source configurations​

Delete media source(s) configuration​

Display a single view with a single media source​

Display a single view with multiple media sources​

Display multiple views with multiple media sources​

Get sequence configuration​

List available sequences​

Delete sequence configuration​

Stop one sequence and start another one​

Get the current position in an active sequence​

Fetch the capabilities of a camera on the network​

Check if the capabilities can be fetched over an unencrypted connection​

Enable or disable unsecure connections when fetching capabilities​

Pause and resume sequence​

Play a media source and resume a sequence​

Play the next view in the current sequence​

Play the previous view in the current sequence​

Play any view in the current sequence​

Play any view in any sequence​

Temporarily play a sequence and then resume the current sequence​

Stop a media source that is playing as an alarm​

API Specification - Layout​

setSequence​

getSequence​

listSequence​

deleteSequence​

API Specification - Media source​

setMediaSources​

getMediaSources​

deleteMediaSources​

API Specification - Player​

playSequence​

stopSequence​

pauseSequence​

resumeSequence​

playMediaSource​

stopMediaSource​

playNextView​

playPreviousView​

playView​

getCurrentPosition​

API Specification - Capabilities​

getCameraCapabilities​

getDecoderCapabilities​

getUnsecureConnectionAllowed​

SetUnsecureConnectionAllowed​

API Specification - Line-out Control​

setEnabled​

getEnabled​

Parameter descriptions​

Overview

Identification

Obsoletes

Limitations

Use cases

Configure live video media source(s)

Get available media source configurations

Delete media source(s) configuration

Display a single view with a single media source

Display a single view with multiple media sources

Display multiple views with multiple media sources

Get sequence configuration

List available sequences

Delete sequence configuration

Stop one sequence and start another one

Get the current position in an active sequence

Fetch the capabilities of a camera on the network

Check if the capabilities can be fetched over an unencrypted connection

Enable or disable unsecure connections when fetching capabilities

Pause and resume sequence

Play a media source and resume a sequence

Play the next view in the current sequence

Play the previous view in the current sequence

Play any view in the current sequence

Play any view in any sequence

Temporarily play a sequence and then resume the current sequence

Stop a media source that is playing as an alarm

API Specification - Layout

setSequence

getSequence

listSequence

deleteSequence

API Specification - Media source

setMediaSources

getMediaSources

deleteMediaSources

API Specification - Player

playSequence

stopSequence

pauseSequence

resumeSequence

playMediaSource

stopMediaSource

playNextView

playPreviousView

playView

getCurrentPosition

API Specification - Capabilities

getCameraCapabilities

getDecoderCapabilities

getUnsecureConnectionAllowed

SetUnsecureConnectionAllowed

API Specification - Line-out Control

setEnabled

getEnabled

Parameter descriptions
