Orientation API

Description

VAPIX® Orientation API is used to retrieve information about the camera lens orientation. The API is available in products with built-in orientation devices such as gyroscopes and accelerometers.

Supported functionality:

Get the longitudinal angle.
Get the lateral angle.

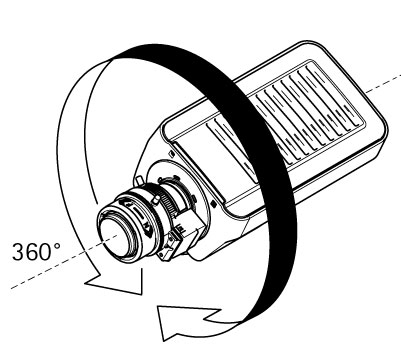

Longitudinal angle. The longitudinal angle (0 to 359 degrees) is the lens’ rotation around its longitudinal axis.

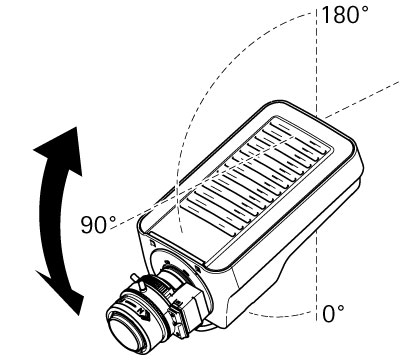

Lateral angle. The lateral angle (0 to 180 degrees) is the angle between the lens’ longitudinal axis and a line perpendicular to the ground surface. 0 degrees represents a lens pointing straight downwards. 180 degrees represents a lens pointing straight upwards.

Identification

VAPIX® Orientation API is available if:

Property: Properties.Orientation.Reporting=yes

Common examples

Retrieve supported XML schema versions.

Request:

http://<servername>/axis-cgi/orientation/getschemaversions.cgi

Response:

HTTP/1.0 200 OK
Content-Type: text/xml

<?xml version="1.0" encoding="utf-8"?>
<OrientationResponse xmlns="http://www.axis.com/vapix/http_cgi/orientation1" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.axis.com/vapix/http_cgi/orientation1 http://www.axis.com/vapix/http_cgi/orientation1" SchemaVersion="1.0">
  <Success>
    <GetSchemaVersionsSuccess>
      <SchemaVersion>
        <VersionNumber>1.0</VersionNumber>
        <Deprecated>false</Deprecated>
      </SchemaVersion>
    </GetSchemaVersionsSuccess>
  </Success>
</OrientationResponse>

Get the longitudinal angle.

Request:

http://<servername>/axis-cgi/orientation/getlongitudinalvalue.cgi?schemaversion=1

Response:

HTTP/1.0 200 OK
Content-Type: text/xml

<?xml version="1.0" encoding="utf-8"?>
<OrientationResponse xmlns="http://www.axis.com/vapix/http_cgi/orientation1" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.axis.com/vapix/http_cgi/orientation1 http://www.axis.com/vapix/http_cgi/orientation1" SchemaVersion="1.0">
  <Success>
    <GetLongitudinalValueSuccess>
      <LongitudinalValue>
        <Value>180</Value>
      </LongitudinalValue>
    </GetLongitudinalValueSuccess>
  </Success>
</OrientationResponse>

Get the lateral angle.

Request:

http://<servername>/axis-cgi/orientation/getlateralvalue.cgi?schemaversion=1

Response:

HTTP/1.0 200 OK
Content-Type: text/xml

<?xml version="1.0" encoding="utf-8"?>
<OrientationResponse xmlns="http://www.axis.com/vapix/http_cgi/orientation1" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.axis.com/vapix/http_cgi/orientation1 http://www.axis.com/vapix/http_cgi/orientation1" SchemaVersion="1.0">
  <Success>
    <GetLateralValueSuccess>
      <LateralValue>
        <Value>72</Value>
      </LateralValue>
    </GetLateralValueSuccess>
  </Success>
</OrientationResponse>

Get schema versions

Use orientation/getschemaversions.cgi to retrieve the supported XML schema versions.

Request

Access control: admin, operator
Method: GET

Syntax:

http://<servername>/axis-cgi/orientation/getschemaversions.cgi

This CGI has no arguments

Response

Responses from orientation/getschemaversions.cgi

Success

A successful request returns the supported schema version.

HTTP Code: 200 OK
Content-Type: text/xml

Body:

<?xml version="1.0" encoding="utf-8"?>
<OrientationResponse xmlns="http://www.axis.com/vapix/http_cgi/orientation1" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.axis.com/vapix/http_cgi/orientation1 http://www.axis.com/vapix/http_cgi/orientation1" SchemaVersion="1.0">
  <Success>
    <GetSchemaVersionsSuccess>
      <SchemaVersion>
        <VersionNumber>[major.minor]</VersionNumber>
        <Deprecated>[true/false]</Deprecated>
      </SchemaVersion>
      [...]
    </GetSchemaVersionsSuccess>
  </Success>
</OrientationResponse>

Supported elements, attributes and values:

Element	Description
`OrientationResponse`	Contains the response. For information about XML schema versions, see XML schemas.
`Success`	Successful request.
`GetSchemaVersionsSuccess`	Successful response from `getschemaversions.cgi`.
`SchemaVersion`	Contains one schema version.
`VersionNumber`	Schema version. See XML schemas.
`Deprecated`	If `true`, this version of the XML Schema is deprecated and should not be used.

Error

If an error occurred, a GeneralError response is returned. See General error response.

Error codes: 10, 20, 40

Get longitudinal angle

Use orientation/getlongitudinalvalue.cgi to retrieve the longitudinal angle.

Request

Access control: admin, operator
Method: GET

Syntax:

http://<servername>/axis-cgi/orientation/getlongitudinalvalue.cgi?<argument>=<value>

with the following arguments and values:

Argument	Valid values	Description
`schemaversion=<integer>`	Integer	Required. The major version of the XML Schema to use for the response. See XML schemas.

Response

Responses from orientation/getlongitudinalvalue.cgi

Success

A successful request returns the lateral angle.

HTTP Code: 200 OK
Content-Type: text/xml

Body:

<?xml version="1.0" encoding="utf-8"?>
<OrientationResponse xmlns="http://www.axis.com/vapix/http_cgi/orientation1" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.axis.com/vapix/http_cgi/orientation1 http://www.axis.com/vapix/http_cgi/orientation1" SchemaVersion="1.0">
  <Success>
    <GetLongitudinalValueSuccess>
      <LongitudinalValue>
        <Value>[angle]</Value>
      </LongitudinalValue>
    </GetLongitudinalValueSuccess>
  </Success>
</OrientationResponse>

Supported elements, attributes and values:

Element	Description
`OrientationResponse`	Contains the response. For information about XML schema versions, see XML schemas.
`Success`	Successful request.
`GetLongitudinalValueSuccess`	Successful response from `getlongitudinalvalue.cgi`.
`LongitudinalValue`	Contains the longitudinal angle.
`Value`	The angle in degrees.

Error

If an error occurred, a GeneralError response is returned. See General error response.

Error codes: 10, 20, 40

Get lateral angle

Use orientation/getlateralvalue.cgi to retrieve the lateral angle.

Request

Access control: admin, operator
Method: GET

Syntax:

http://<servername>/axis-cgi/orientation/getlateralvalue.cgi?<argument>=<value>

with the following arguments and values:

Argument	Valid values	Description
`schemaversion=<integer>`	Integer	Required. The major version of the XML Schema to use for the response. See XML schemas.

Response

Responses from orientation/getlateralvalue.cgi

Success

A successful request returns the lateral angle.

HTTP Code: 200 OK
Content-Type: text/xml

Body:

<?xml version="1.0" encoding="utf-8"?>
<OrientationResponse xmlns="http://www.axis.com/vapix/http_cgi/orientation1" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.axis.com/vapix/http_cgi/orientation1 http://www.axis.com/vapix/http_cgi/orientation1" SchemaVersion="1.0">
  <Success>
    <GetLateralValueSuccess>
      <LateralValue>
        <Value>[angle]</Value>
      </LateralValue>
    </GetLateralValueSuccess>
  </Success>
</OrientationResponse>

Supported elements, attributes and values:

Element	Description
`OrientationResponse`	Contains the response. For information about XML schema versions, see XML schemas.
`Success`	Successful request.
`GetLateralValueSuccess`	Successful response from `getlateralvalue.cgi`.
`LateralValue`	Contains the lateral angle.
`Value`	The angle in degrees.

Error

If an error occurred, a GeneralError response is returned. See General error response.

Error codes: 10, 20, 40

General error response

General error response in the orientation API.

HTTP Code: 200 OK
Content-Type: text/xml

Body:

<?xml version="1.0" encoding="utf-8"?>
<OrientationResponse xmlns="http://www.axis.com/vapix/http_cgi/orientation1" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.axis.com/vapix/http_cgi/orientation1 http://www.axis.com/vapix/http_cgi/orientation1" SchemaVersion="1.0">
  <Error>
    <GeneralError>
      <ErrorCode>[error code]</ErrorCode>
      <ErrorDescription>[description]</ErrorDescription>
    </GeneralError>
  </Error>
</OrientationResponse>

Supported elements, attributes and values:

Element	Description
`OrientationResponse`	Contains the response. For information about XML schema versions, see XML schemas.
`Error`	The request contains errors.
`GeneralError`	General error.
`ErrorCode`	A numeric error code. See table below.
`ErrorDescription`	Description of the error.

Error code	Description	CGI
`10`	Error while processing the request.	All
`20`	Invalid request.	All
`40`	Specified version is not supported.	All
